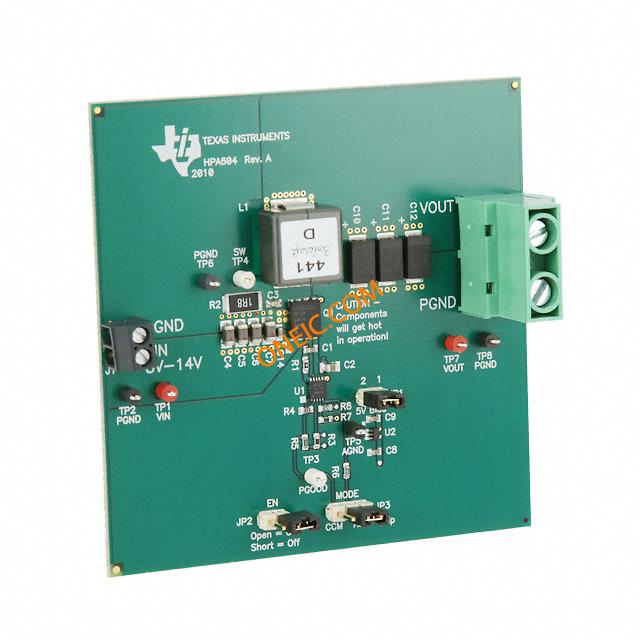

CSD86350Q5DEVM-604
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For Synchronous Buck NEX FET Power Block Power Management IC Development Tools Hi Density,Hi Crrnt Pwr Supply Sol EVAL MODULE FOR CSD86350Q5D EVAL MODULE, FOR CSD86350Q5D |
| 分类 |
商业参数
| 产品 | Power Management Modules | 商标名 | NexFET |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423990 |
电气参数
| 输出电流 | 25A | 稳压器拓扑 | Buck |
| 开关频率 | 290kHz | 最小输入电压 | 1.2V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | Development Kit | 已删除 | Not Compliant |
| 内容 | Board | 产品特性 | http://www.ti.com/lit/ug/sluu416a/sluu416a.pdf |
| 技术 | DC to DC Controller | 套件内容 | :Dev Board CSD86350Q5DEVM-604 |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | CSD86350Q5D | 射频系列/标准 | CSD86350Q5D |
| 使用的IC/零件 | CSD86350Q | ||
文档与媒体
相关型号
CSD86350Q5D
texas instruments
Synchronous Buck NexFET Power Block 8-Pin SON T/R MOSFET N-CH 25V 40A 8SON Synchronous Buck NexFET™ Power Block MOSFET Pair Texas Instruments 双 N沟道 Si MOSFET 模块 , 120 A, Vds=25 V, 8针 SON封装 MOSFET Synch Buck NexFET Pwr Block MOSFET

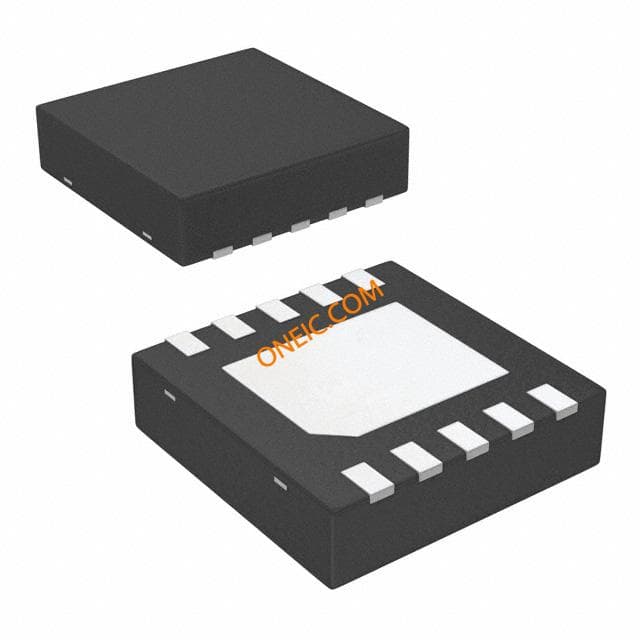

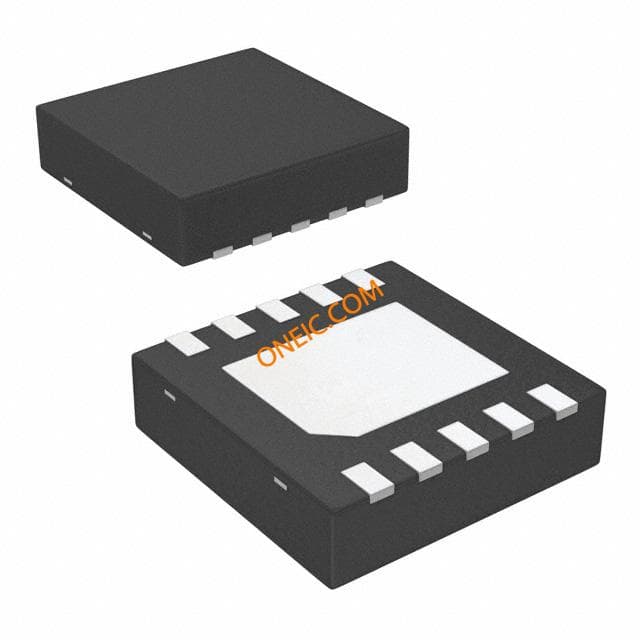

TPS51218DSCT
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V Input 10-Pin WSON EP T/R IC REG CTRLR BUCK PWM 10WSON Switching Controllers 3-28V In,20A Synch Step Down Cntrlr DC DC Cntrlr Single-OUT Sync Step Down 3V to 28V 10-Pin SON EP T/R DC/DC CONTROLLER, 3 TO 28V, 10SON 3V to 28V Input. 20A Synchronous Step Down Controller with DCAP™ Mode for Notebook Power Supply 1输出 直流-直流控制器, 20A, 28 V, 降压, 465 kHz, 10引脚 WSON封装
TPS51218EVM-496
texas instruments
TPS51218EVM-496 Power Management IC Development Tools Step Down Converter Eval Mod EVALUATION MODULE WITH 20-ADC STEADY-STATE CURRENT EVAL MODULE FOR TPS51218 TPS5121, STEP DOWN CONV, EVAL MOD
