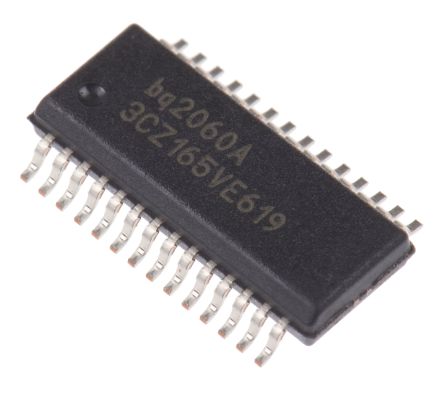

点击放大查看
BQ2060A-E619DBQ
| 制造商 | Texas Instruments Incorporated |
| 描述 | Gas Gauge Lead-Acid/Li-Ion/NiCD/NiMH Packs 3.3V 28-Pin SSOP Tube IC SBS-COMPL GAS GAUGE 28-QSOP Battery Management Multi-Chem SBS 1.1 Compliant Gas Gauge IC, BATTERY MANAGEMENT, LI-ION, SMD Multi-Chemistry SBS 1.1 Compliant Gas Gauge With 5 LED Drivers, Additional Battery Mgmt Control Texas Instruments 铅酸、锂离子、镍镉、镍氢 气体压力计 IC, 3.3 V, 28针 SSOP封装 |
| 分类 |
商业参数
| 产品类别 | Battery Management | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 40 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 接口 | :1 Wire, Serial | 额定电压 | 3.3 V |
| 电池节数 | 2-4 Cells | 供电电压 | 2.7 V ~ 3.7 V |
| 最小供电电压 | 2.7 V | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 4(Max) | 重量 | 0.006113 oz |
| 包装方式 | Tube | 封装体颜色 | :SSOP |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :28 | 封装形式 | 28SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 10(Max) | 包装数量 | SSOP |
| 位数 | 28 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 28-SSOP/QSOP | ||
产品信息
| 类型 | Gas Gauge | 系列 | BQ2060A |
| 功能 | Fuel, Gas Gauge/Monitor | 软件 | SLUS500D |
| 基本单元 | :2060 | 可编程性 | Pack |
| 电池系列 | :Fuel Gauge | 电池化学类型 | Lead-Acid|Li-Ion|NiCD|NiMH Packs |
| 控制接口 | :1 / 2 Wire, Serial | 使用的IC/零件 | View |
| 印刷电路板数量 | 28 | ||
环境参数
| 测试温度 | -20 to 70 | 工作温度 | -20 to 70 °C |
