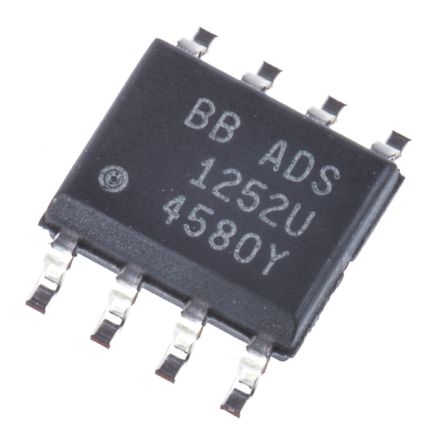

ADS1252U
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single Delta-Sigma 41ksps 24-bit Serial 8-Pin SOIC Tube Single ADC Delta-Sigma 41ksps 24-bit Serial 8-Pin SOIC Tube IC ADC 24-BIT SER 41.7KHZ 8-SOIC Analog to Digital Converters - ADC ResolutionPlus 24-Bit 40kHz IC, 24BIT ADC, SMD, 1252, SOIC8 ResolutionPlus 24-Bit, 40kHz Analog-to-Digital Converter A/D converter IC 24 Bit SO-8, ADS1252, ADS1252U, Texas Instruments NEUTRAL , 24 位 ADC, 差分输入, 串行接口, 8针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Analog to Digital Converters - ADC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :1252 | 抗辐射加固 | No |
电气参数
| 接口 | Serial (2-Wire) | 线性度 | �1LSB |
| 输入类型 | Voltage | 分辨率 | 24 Bit |
| 输入信号 | Single-Ended|Differential | INL/DNL（LSB） | ±0.0015%FSR |
| 输入功率 | Single | 额定功率 | 50 W |
| 转换器类型 | General Purpose | 数据接口 | Serial |
| 输入极性 | Bipolar | 位数 | 24 |
| 基准类型 | Ext | 额定电压 | ±5.25V |
| 数据速率（最大） | 41 KSPs | 额定电压值 | �5.25 |
| 输出电流 | :8mA | 输入数量 | 1 |
| 供电电压 | 4.75 V to 5.25 V | 分辨率（位） | :24bit |
| 电压基准 | External | 通道数量 | 1 Channel |
| 元件数量 | 1 | 采样频率 | 41 ksps |
| 模拟输入/输出 | 5.25 | 最大额定电流 | Catalog |
| ADC/DAC 数量 | 1 | 供电电源 | Single |
| 上升/下降时间（典型） | :0.4µs | 平均正向功率 | 40 |
| 最大功耗 | 500 mW | 差分非线性 | ±1LSB |
| 数字供电电压 | 5.25 | 内部供电电压 | :4.75V to 5.25V |
| 采样率（每秒） | 41.7k | 差分 - 输入:输出 | Yes |
| 电源电压范围（典型） | Not Required V | 信噪比，ADC/DAC（dB）典型值 | Yes |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| 系列 | ADS1252 | 软件 | SBAS127D |
| 基本单元 | :1252 | 架构 | Delta-Sigma |
| 功能框图 | fbd_sbas127d.gif | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | A/D转换器数量 | 1 |
| 输入数量及类型 | 1 Differential, Bipolar | ||
