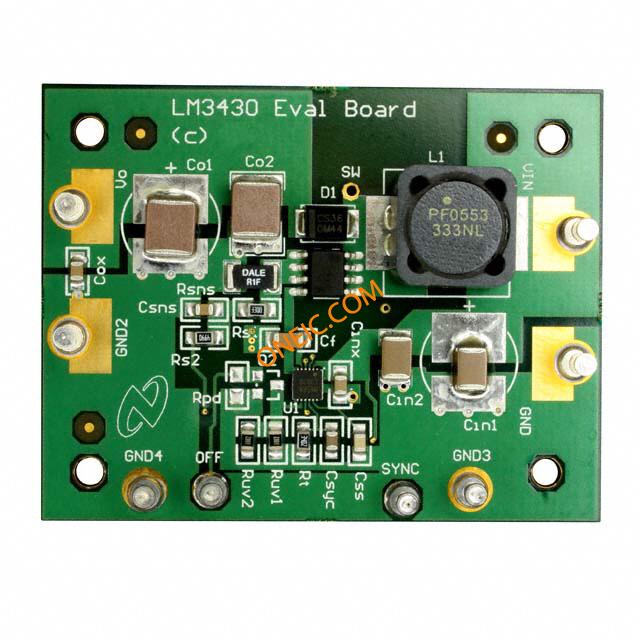

LM3430EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | . LM3430EVAL/NOPB - LM3430 - 1 Non-Isolated Output DC/DC, Step Up Evaluation Board from Texas Instruments. from now! |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 10.8 V to 26.4 V | 输出电流 | 700 mA |
| 供电电压 | 10.8 V to 26.4 V | 稳压器拓扑 | Boost |
| 开关频率 | 600kHz | 最小输入电压 | 48V |
机械参数
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | DC/DC Converters, Regulators & Controllers | 内容 | Board |
| 功能 | The Evaluation Board has been designed for testing of various circuits using the LM3430 boost regulator controller | 主要用途 | DC/DC, Step Up |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM3430 |
| 使用的IC/零件 | LM3430 | 适用产品/相关产品 | LM3430 |
环境参数
| 机械寿命 | New At Mouser | ||
