MT3330C4
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY GEN PURPOSE 3PDT 10A 24V Electromechanical Relay 3PDT 20A 24VDC 475Ohm Socket Electromechanical Relay 3PDT 20A 24VDC 475Ohm Socket Product Highlights:MT SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWith Coil Suppression Diode MT3330C4 |
| 分类 |
商业参数
| 标准包装数量 | 250 | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.2 W |
| 线圈电流 | 50mA | 释放时间 | 10ms |
| 输入功率 | 1200 | 核心电压 | 1500 – 2500 |
| 额定电压 | 240 | 线圈电阻 | 475 Ohms |
| 浪涌电流 | 10 | 供电电压 | 24VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 2.4 VDC |
| 连接器阻抗 | 3 Form C (CO) | 跳闸电流 | 20 |
| 最大额定电流 | 10 | 输出1频率 | 单稳态、直流 |
| 额定电流（安培） | 5 – 10, 16 | 绝缘电阻 | 4 mm [ .157 in ] |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 10A |
| 输出源/灌电流 | 1mA @ .02V | 放电电流（最大）（8/20µs） | 10 |
| 阳极-阴极电压（Vak）（最大） | 400 | ||
机械参数
| 宽度 | 35.5 mm [ 1.398 in ] | 高度 | 57 mm [ 2.244 in ] |
| 长度 | 35.6 mm [ 1.402 in ] | 重量 | 80 g [ 2.824 oz ] |
| 包装方式 | Bulk | 触点形式 | 3PDT (3 Form C) |
| 致动器类型 | DC | 安装类型 | Socketable |
| 触头材料 | Silver Nickel (AgNi) | 绝缘高度 | 3 – 5.5 |
| 端接样式 | Plug In, 11 Pin (Octal) | 触点数 | 3 |
| 初级绕组 | LED, UL 线圈绝缘类 B, 电气指示灯 | 介电材料 | 2500 |
| 绝缘直径 | 2.8 mm [ .11 in ] | 宽度/横截面 | 30 – 40 |
| 第一连接器安装类型 | 插座 | ||
产品信息
| 产品特性 | Diode, LED Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 15ms | 防护等级 | RTI |
| 工作温度 | -40°C ~ 60°C | 初始介电强度 | 1500 |
相关型号
8-1415043-1
te connectivity / p&b

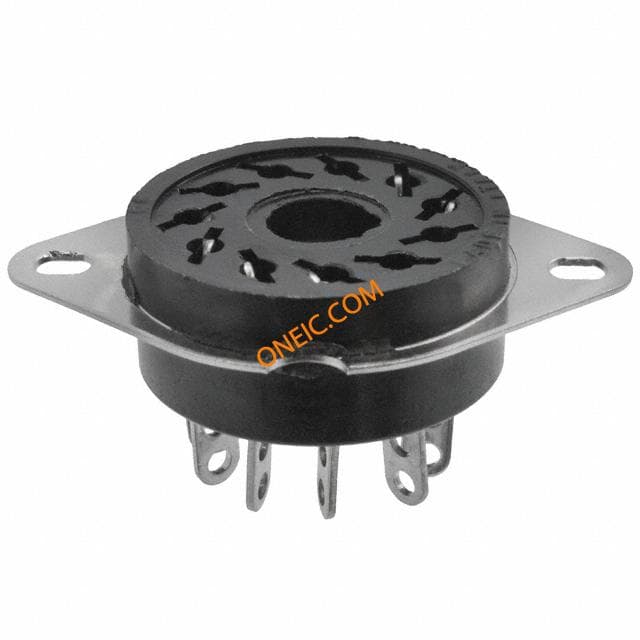

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET ACCESSORIES Relay socket, 8-1415043-1, TE Connectivity MT78613
MT78760
TE Connectivity / P&B
Relay Sockets & Hardware SCREW-TYPE TERMINALS 11-PIN SOCKET DINRAIL SCREW TERM 11PIN Conn Relay Socket SKT 11 POS Screw ST Panel Mount Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES
MT78740
TE Connectivity / Schrack

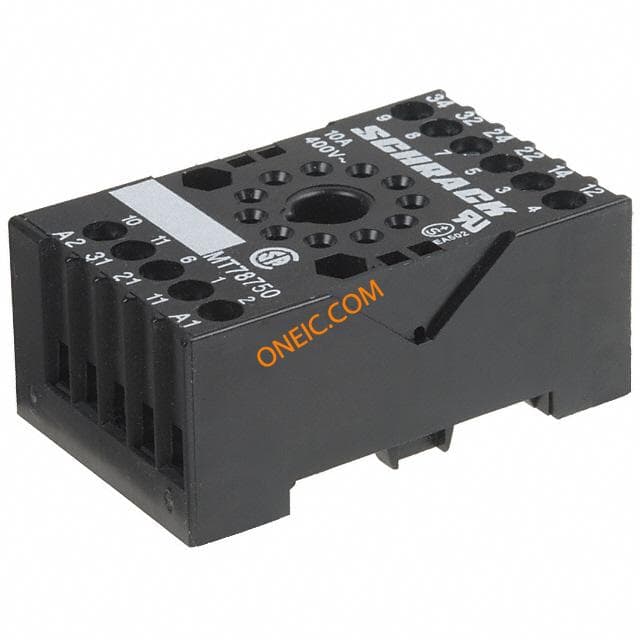

Relay Sockets & Hardware Socket SOCKET DINRAIL 3P FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Conn Relay Socket SKT 11 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 3Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 11 PIN Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES Relay socket, MT78740, TE Connectivity MT78740
MT78750
TE Connectivity / P&B
Relay Sockets & Hardware SKT DINRAIL 11PIN OCTAL MT RELAY SKT DINRAIL 11PIN OCTAL MT RELAY Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Thru-Hole Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES
1415044-1
te connectivity / p&b

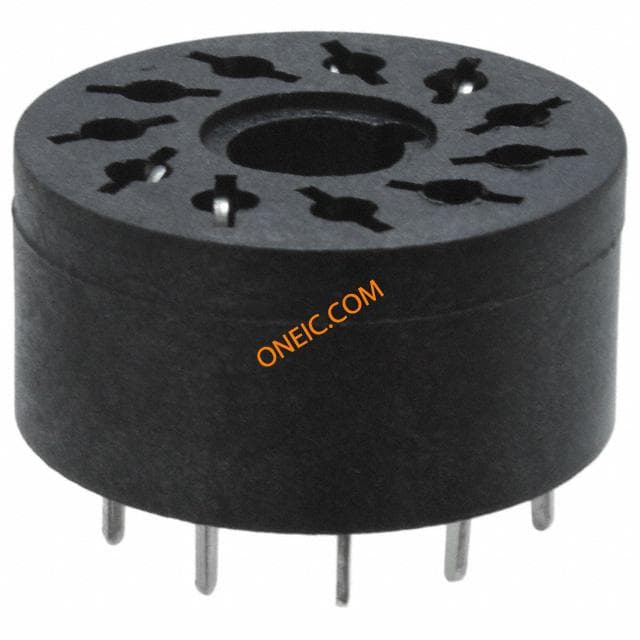

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole MT78603 SOCKET 11PIN PCB TERM Relay socket, 1415044-1, TE Connectivity
