MT328060

点击放大查看

MT328060

制造商
TE Connectivity Ltd.
描述RELAY GEN PURPOSE 3PDT 10A 60V General Purpose Relays 10A, 60VAC 3 Form C(CO) SKT MNT General Purpose Relay Coil Voltage: 60 VAC Contact Configuration: 3C 3PDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable MT328060
分类
工业电源组件和继电器功率继电器，2安培以上专用继电器
对参数有疑问？问 AI 助手

商业参数

其他名称1393092-6零件号别名1393092-6
标准包装数量25

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
认可国家UL Recognized, VDE Component Mark, CSA CertifiedRoHS/ELV合规声明Converted to comply with RoHS directive
FCC Part 68隔离n/a

电气参数

电流10 Amps线圈类型Non Latching
核心类型Monostable线圈功率2.3 VA
最大功率1.96, 2.27释放时间10ms
输入功率2.3 VA额定输出功率2 – 3
可见输出With核心电压1500 – 2500
额定电压240线圈电阻544 Ohms
浪涌电流10供电电压60VAC
开关电压400VAC - MaxVgs(th)（最大）@ Id24 VAC
连接器阻抗3 Form C (CO)跳闸电流20
二极管配置Without最大额定电流10
输出1频率单稳态、交流额定电流（安培）5 – 10, 16
绝缘电阻4 mm [ .157 in ]集电极-发射极饱和电压（最大）@ Vge, Ic48 VAC
触点额定电流10A输出源/灌电流1mA @ .02V
放电电流（最大）（8/20µs）10阳极-阴极电压（Vak）（最大）400

机械参数

宽度35.5 mm [ 1.398 in ]高度57 mm [ 2.244 in ]
长度35.6 mm [ 1.402 in ]重量80 g [ 2.824 oz ]
包装方式Bulk端接方式11 Pin Octal-Style Plug
触点形式3PDT (3 Form C)致动器类型AC
安装类型Socketable触头材料Silver Nickel (AgNi)
绝缘高度3 – 5.5外形尺寸 长x宽x高35.50 x 35.50 x 57.00 [1.398 x 1.398 x 2.245]
插针孔直径Industry Standard端接样式Plug In, 11 Pin (Octal)
触点数3初级绕组LED, UL 线圈绝缘类 B, 电气指示灯
介电材料2500绝缘直径2.8 mm [ .11 in ]
宽度/横截面30 – 40典型触点布局3C 3PDT
供应商器件封装Enclosed第一连接器安装类型插座

产品信息

类型Relays产品特性LED Indicator, Test Button
功能Single Side Stable极性No
继电器类型General Purpose测试按钮With
卡标准General Purpose Relay接线图3 Form C

环境参数

动作时间15ms防护等级RTI
工作温度-40°C ~ 50°C初始介电强度1500

相关型号

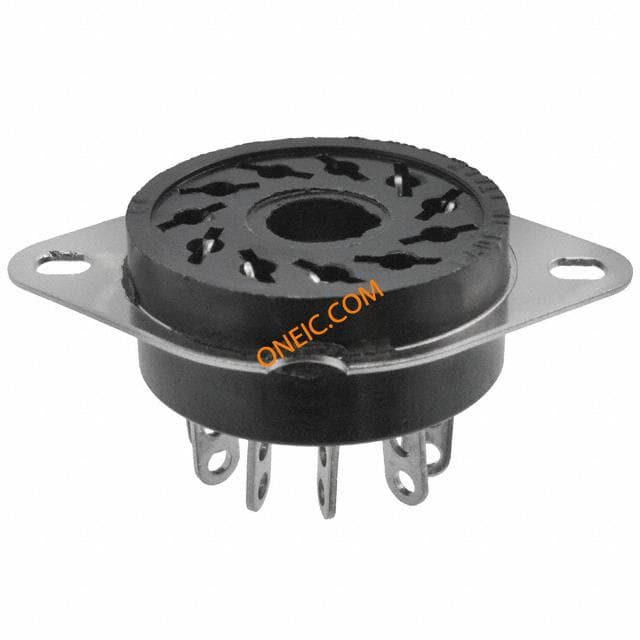

8-1415043-1

8-1415043-1

te connectivity / p&b

Conn Relay Socket SKT 11 POS Solder ST Thru-Hole RELAY SOCKET ACCESSORIES Relay socket, 8-1415043-1, TE Connectivity MT78613

¥16.7960
详情
MT78760

MT78760

TE Connectivity / P&B

Relay Sockets & Hardware SCREW-TYPE TERMINALS 11-PIN SOCKET DINRAIL SCREW TERM 11PIN Conn Relay Socket SKT 11 POS Screw ST Panel Mount Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES

¥28.9000
详情
MT78740

MT78740

TE Connectivity / Schrack

Relay Sockets & Hardware Socket SOCKET DINRAIL 3P FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Conn Relay Socket SKT 11 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 3Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 11 PIN Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES Relay socket, MT78740, TE Connectivity MT78740

¥41.7520
详情

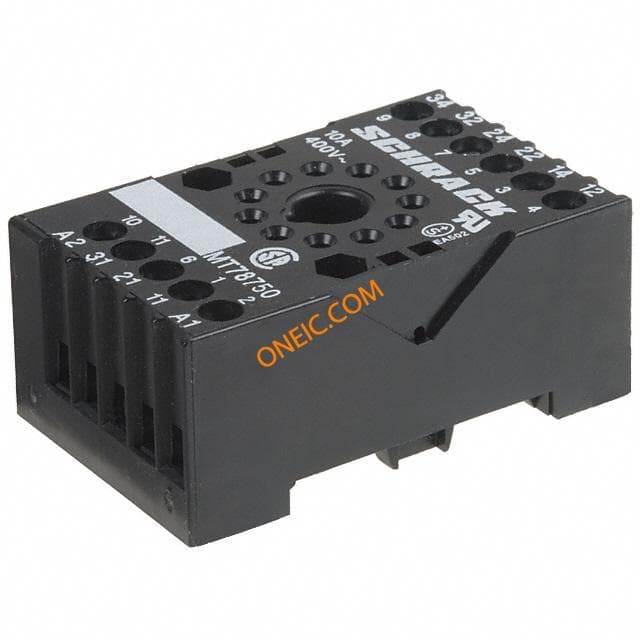

MT78750

MT78750

TE Connectivity / P&B

Relay Sockets & Hardware SKT DINRAIL 11PIN OCTAL MT RELAY SKT DINRAIL 11PIN OCTAL MT RELAY Relay Socket For Use With MT Series Conn Relay Socket SKT 11 POS Screw ST Thru-Hole Socket,Relay;DIN-RAIL,11PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES

¥28.9000
详情

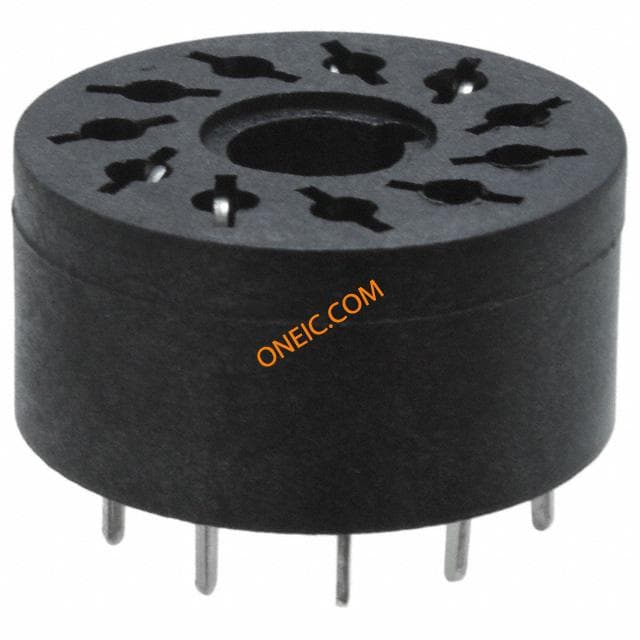

1415044-1
