MT223220
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY GEN PURPOSE DPDT 10A 220V Electromechanical Relay DPDT 20A 220VDC 40KOhm Socket Electromechanical Relay DPDT 20A 220VDC 40KOhm Socket Product Highlights:Relay Type = Multimode RelayRelay Style = PowerMT SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps. MT223220 |
| 分类 |
商业参数
| 其他名称 | 6-1393090-0 | 标准包装数量 | 25 |
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.2 W |
| 线圈电流 | 5.5mA | 释放时间 | 10ms |
| 输入功率 | 1200 | 核心电压 | 1500 – 2500 |
| 额定电压 | 240 | 线圈电阻 | 40 kOhms |
| 浪涌电流 | 10 | 供电电压 | 220VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 22 VDC |
| 连接器阻抗 | 2 Form C (CO) | 跳闸电流 | 20 |
| 最大额定电流 | 10 | 输出1频率 | 单稳态、直流 |
| 额定电流（安培） | 5 – 10, 16 | 绝缘电阻 | 4 mm [ .157 in ] |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 165 VDC | 触点额定电流 | 10A |
| 输出源/灌电流 | 10mA @ 12V | 放电电流（最大）（8/20µs） | 10 |
| 阳极-阴极电压（Vak）（最大） | 400 | ||
机械参数
| 宽度 | 35.5 mm [ 1.398 in ] | 高度 | 57 mm [ 2.244 in ] |
| 长度 | 35.6 mm [ 1.402 in ] | 重量 | 80 g [ 2.824 oz ] |
| 包装方式 | Bulk | 触点形式 | DPDT (2 Form C) |
| 致动器类型 | DC | 安装类型 | Socketable |
| 触头材料 | Silver Nickel (AgNi) | 绝缘高度 | 3 – 5.5 |
| 端接样式 | Plug In, 8 Pin (Octal) | 触点数 | 2 |
| 初级绕组 | LED, UL 线圈绝缘类 B, 电气指示灯 | 介电材料 | 2500 |
| 绝缘直径 | 2.8 mm [ .11 in ] | 宽度/横截面 | 30 – 40 |
| 第一连接器安装类型 | 插座 | ||
产品信息
| 产品特性 | LED Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 15ms | 防护等级 | RTI |
| 工作温度 | -40°C ~ 60°C | 初始介电强度 | 1500 |
相关型号
MT78745
TE Connectivity / Schrack
Relay Sockets & Hardware DIN-rail SCKT w/SCRW SOCKET DINRAIL DP FOR MT RELAYS Relay Socket For Use With MT Series Conn Relay Socket SKT 2 POS Screw ST Conn Relay Socket SKT 2 POS Screw ST Product Highlights:SocketMT SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision SOCKET, DIN, MULTIMODE, 8 PIN Socket,Relay;DIN-RAIL,8PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES MT78745
MT78612
TE Connectivity / Axicom

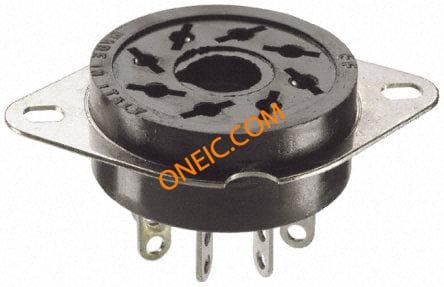

General Purpose Relays 8-Pole solder termin SOCKET 8PIN SOLDER TERM Relay Socket For Use With MT Series Relay Sockets & Hardware 8-Pole solder termin Socket,Relay;8PIN,WITHSOLDERTERMINALS,FORMTMULTIMODERELAYSERIES
MT78755
TE Connectivity / Schrack
Relay Sockets & Hardware 125 VDC, 2 FORM C DPDT,2/CO,TIME DELAY SKT DINRAIL 8PIN OCTAL MT RELAY Relay Socket For Use With MT Series Conn Relay Socket SKT 8 POS Screw ST SOCKET, DIN, 8 PIN Socket,Relay;DIN-RAIL,8PIN,SCREWTERMINALS,FORMTMULTIMODERELAYSERIES
