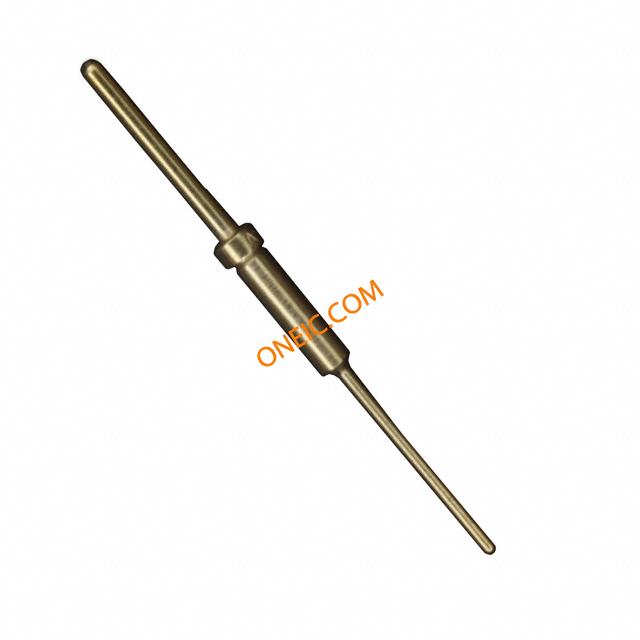

207683-6

点击放大查看

207683-6

制造商
TE Connectivity Ltd.
描述CONN PIN D-SUB CONTACT SIZE 22 AMPLIMITE - Aerospace & Military Contact PIN Solder ST Cable Mount Loose Piece Contact PIN Solder ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardPinTermination Post Length = 4.45 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PIM CONT,SZ 22D,AMPLIMITE
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称2076836标准包装数量1,000

合规参数

RoHSLead free / RoHS Compliant资质认证No
无铅定义Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capablRoHS/ELV合规状态RoHS compliant / ELV compliant
认证机构标志No

电气参数

最大额定电流否输出高/低电流No

机械参数

镀层Gold直径0.46
材料（通用）Copper Alloy包装方式Bulk
触点形式Machined触点尺寸22
触头类型Posted端子尺寸22
连接器类型柱形接触镀层Gold
外壳材料（壳体）铜合金插入件材料铜合金
触头材料Copper Alloy包装数量Loose Piece
主要材料Copper Alloy绝缘高度否
端接样式插针连接器颜色否
接触件端接Solder, PCB端子柱长度4.45
接触镀层厚度50µin (1.27µm)触点材料 - 配合Gold over Copper

产品信息

类型Signal系列90
制造商全称AMP产品子类型Contact
其他规格Printed Circuit Board
