点击放大查看

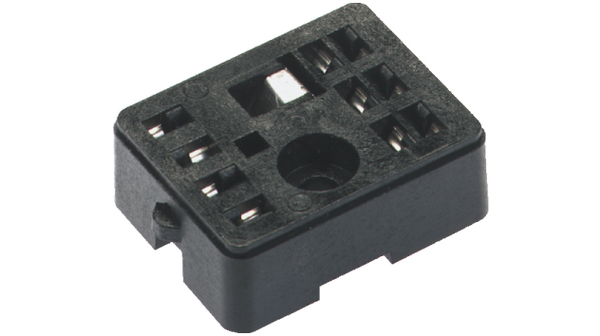

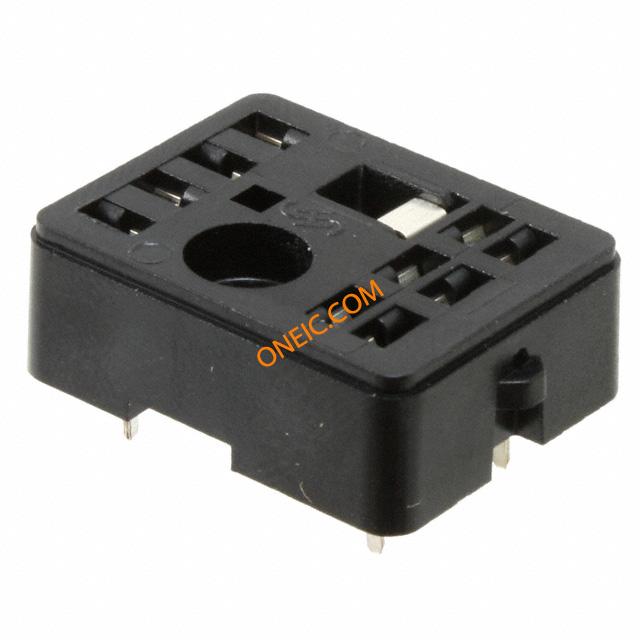

1393824-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY SOCKET PCB SIZE I Relay Sockets and Accessories Conn Relay Socket SKT Solder ST Thru-Hole Conn Relay Socket SKT Solder ST Thru-Hole Product Highlights:SocketCradle Relays - Size I SeriesTerminal Type = PCWith Grounding ProvisionSearch Keywords:relay connectors 2POLECRADLESOCKET Relay socket, size 1, 1393824-1, TE Connectivity V23154Z1001 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 防护类型 | With |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 尺寸 | Size I | 安装类型 | Through Hole |
| 端子类型 | PC | 连接器类型 | 印刷电路板 |
| 接触镀层 | Silver | 插入件材料 | 铜锡合金 |
| 触头材料 | Copper Tin | 主要材料 | 聚碳酸酯 |
| 端接样式 | PC Pin | 位数 | 10 |
| 典型触点布局 | PC | ||
产品信息
| 类型 | Socket | 系列 | Cradle Relays - Size I |
| 制造商全称 | Axicom | 产品子类型 | Socket |
| 适用产品/相关产品 | Cradle Relays, AXICOM | ||
相关型号
1393817-8
te connectivity / p&b
Electromechanical Relay DPDT 0.2A 24VDC 400Ohm Socket Low Signal Relays - PCB V23003A 37B604 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 200MA 24V Signal Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 0.2 Amps Mounting: Plug-in Operating Function: 2 Coil Latching V23003A 37B604
1-1393816-1
te connectivity / p&b
Electromechanical Relay DPDT 2A 110VAC 3.2KOhm Socket Low Signal Relays - PCB V23005A 7C104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 110V Signal Relay Coil Voltage: 110 VAC Contact Configuration: 2C DPDT Current: 2 Amps Mounting: Plug-in Operating Function: Single Side Stable V23005A 7C104
2-1393817-2
te connectivity / p&b
Electromechanical Relay DPDT 2A 48VDC 1.4KOhm Socket Low Signal Relays - PCB V23003A 64C104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 48V Signal Relay Coil Voltage: 48 VDC Contact Configuration: 2C DPDT Current: 2 Amps Mounting: Plug-in Operating Function: 2 Coil Latching
2-1393818-0
te connectivity / p&b
Electromechanical Relay DPDT 2A 72VDC 7.6KOhm Plug-In Low Signal Relays - PCB V23162A 704B604 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 200MA 72V V23162A 704B604
1393807-2
te connectivity / p&b
Electromechanical Relay DPST-NO 5A 33VDC 1.7KOhm Plug-In Communications/Signal PC Board Relays RELAY GEN PURPOSE DPST 5A 32V Low Signal Relays - PCB V23154C 722F105 V23154C 722F105
1393812-2
te connectivity / p&b
Electromechanical Relay DPDT 2A 220VDC 25KOhm Socket Low Signal Relays - PCB V23054C 3B104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 220V
1393817-5
te connectivity / p&b
Electromechanical Relay DPDT 2A 12VDC 100Ohm Socket Low Signal Relays - PCB V23003A 25C104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 12V Signal Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 2 Amps Mounting: Plug-in Operating Function: 2 Coil Latching V23003A 25C104
1-1393807-1
te connectivity / p&b
Electromechanical Relay DPST-NO 5A 48VDC 3.2KOhm Plug-In Low Signal Relays - PCB V23154C 726F105 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPST 5A 48V Electromechanical Relay DPST-NO 5A 48VDC 3.2KOhm Plug-In Search Keywords:switch, signal-level loads, test gear, thermostats, instrumentation, consumer electronics, industrial equipment V23154C 726F105
3-1393818-6
te connectivity / p&b
Electromechanical Relay DPDT 2A 20VDC 550Ohm Plug-In Low Signal Relays - PCB V23162A 720C404 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 200MA 20V V23162A 720C404
4-1393818-0
te connectivity / p&b
Electromechanical Relay DPDT 2A 24VDC 890Ohm Plug-In Low Signal Relays - PCB V23162A 721C104 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 2A 24V Electromechanical Relay DPDT 2A 24VDC 890Ohm Plug-In Search Keywords:switch, signal-level loads, test gear, thermostats, instrumentation, consumer electronics, industrial equipment V23162A 721C104
5-1393818-4
te connectivity / p&b
Electromechanical Relay SPST-NO/SPST-NC 5A 48VDC 3.2KOhm Plug-In Communications/Signal PC Board Relays RELAY GEN PURPOSE DPST 5A 48V Low Signal Relays - PCB V23162A 726F106 V23162A 726F106
9-1393806-5
te connectivity / p&b
Electromechanical Relay DPDT 2A 32VDC 1.7KOhm Plug-In Low Signal Relays - PCB V23154C 722B604 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 200MA 32V V23154C 722B604
9-1393806-8
te connectivity / p&b
Electromechanical Relay DPDT 2A 32VDC 1.7KOhm Plug-In Low Signal Relays - PCB V23154C 722C404 Communications/Signal PC Board Relays RELAY GEN PURPOSE DPDT 200MA 32V V23154C 722C404

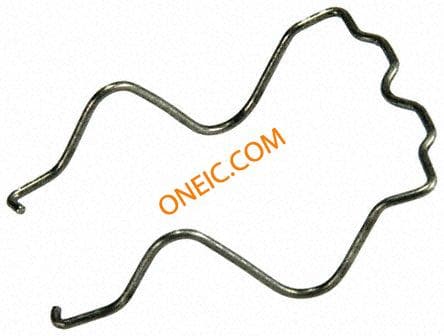

V23154Z1021
