RTD14048
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays SPDT 16A 48VDC Power PCB Relay RELAY GEN PURPOSE SPDT 16A 48V Electromechanical Relay SPDT 16A 48VDC 5.52KOhm Through Hole Electromechanical Relay SPDT 16A 48VDC 5.52KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PCB, SPCO, 48VAC RTD14048 |
| 分类 |
商业参数
| 零件号别名 | 6-1393238-9 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 20 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
| 认证机构 | :BEAB, CSA, KEMA-KEUR, SEMKO, SETI, VDE | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 417 mW |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 线圈电流 | 8.7mA |
| 释放时间 | 6ms | 核心电压 | :250V |
| 线圈电阻 | 5.52 kOhms | 极数 | :1 |
| 输出电流 | :16A | 供电电压 | 48VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 4.8 VDC |
| 击穿电压 | :5kV | 最大触点电流 | :16A |
| 平均正向功率 | 400 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 33.6 VDC |
| 触点额定电流 | 16A | 供电电压 (Vcc/Vdd) | :30V |
| 额定交流电压（相对地/中性线） | :277V | ||
机械参数

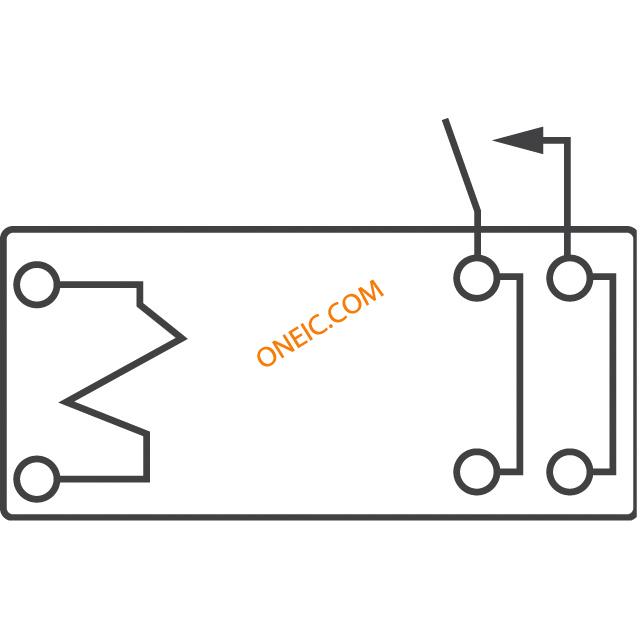

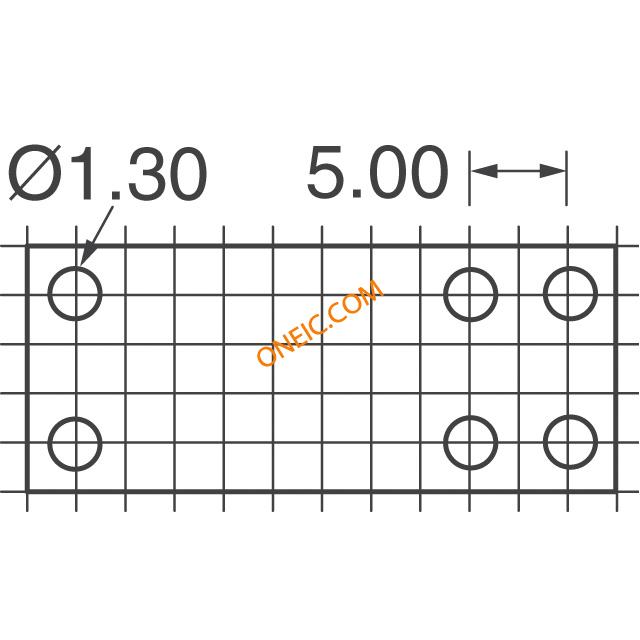

| 深度 | :15.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.012 | 包装方式 | Tube |
| 触点形式 | SPDT (1 Form C) | 高度（最大） | :29mm |
| 引脚间距 | :5.0mm | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 触头材料 | Silver Nickel (AgNi) |
| 端接样式 | PC Pin | 接触件端接 | Pin |
| 典型触点布局 | :(Not Available) | ||
产品信息
| 类型 | Power Relay | 系列 | RT1 |
| 产品特性 | Insulation - Class F, Sealed - Fully | 继电器类型 | General Purpose |
| 其他规格 | :70% | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
RT7872P
TE Connectivity / Schrack
Relay Sockets & Hardware DIN RAIL MOUNT 2POLE SOCKET W/O SCREW FOR DINRAIL Relay Socket For Use With RT Series SOCKET, DIN, 5MM PITCH, CLAMP TERM Socket,Relay;Premium,2Pole,DIN-railMount,LogicalArrangement,Screwless
RP78602
TE Connectivity / Schrack
Relay Sockets & Hardware PCB TERM RT SOCKET PCB TERMINAL RT SERIES Relay Socket For Use With RP Series, RT Series, RY Series Conn Relay Socket SKT Solder ST Thru-Hole Conn Relay Socket SKT Solder ST Thru-Hole Product Highlights:SocketRP Series, RT Series, RY SeriesNumber of Poles = 1Terminal Type = PCWithout Grounding Provision SOCKET, PCB, 5.0MM FOOTPRINT Socket,Relay;forRP,RT,andRYSeries,1Pole 继电器插座, 适用于RP Series, RT Series, RY Series RP78602
RT78726
te connectivity / p&b
Conn Relay Socket SKT 5 POS Screw ST Panel Mount Relay Sockets & Hardware Socket with screw type terminals SOCKET 5MM W/SCREW TERM DIN SOCKET, DIN, 5MM PITCH, SCREW TERM Socket,Relay;XTSERIES,DINRAILMOUNT,SCREWTERMINALS
1860306-1
TE Connectivity Ltd.
Conn Relay Socket SKT 8 POS Screw ST Panel Mount

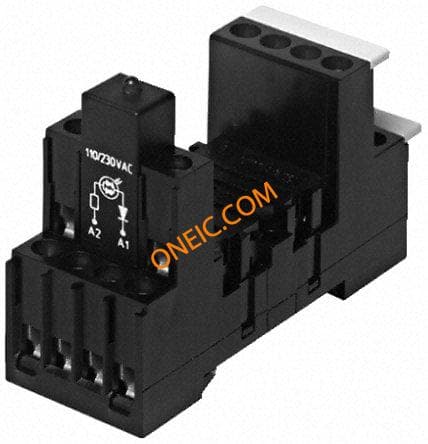

PTMT00A0
