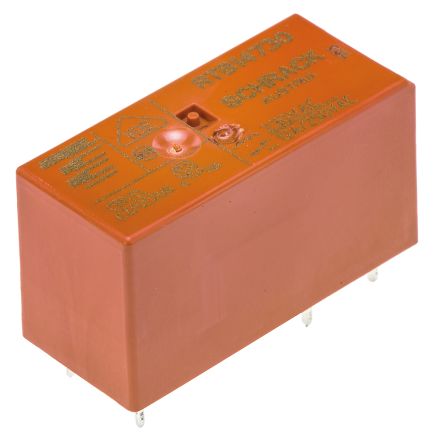

RTB14730
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays SP 12A 3.5mm 230VAC RELAY GEN PURPOSE SPDT 12A 230V SPDT PCB power relay,12A 230ac coil Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 230 VAC RELAY, PCB, 230VAC SPDTPCBpowerrelay,12A230accoil TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 230V RTB14730 |
| 分类 |
商业参数
| 零件号别名 | 2-1393238-6 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 500 | 工厂包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
| 认证机构 | :BEAB, CSA, KEMA-KEUR, SEMKO, SETI, VDE | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 0.74 VA |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 释放时间 | 6ms |
| 核心电压 | :250V | 线圈电阻 | 32500 Ohms |
| 极数 | :1 | 输出电流 | :12A |
| 供电电压 | 230 V | 开关电压 | 400VAC - Max |
| Vgs(th)（最大）@ Id | 34.5 VAC | 击穿电压 | :5kV |
| 必须动作电压 | :172.5V | 释放电压 | :34.5V |
| 输出浪涌功率 | 3 kVA | 触点电压（最大） | :240V |
| 最大触点电流 | :12A | 平均正向功率 | 0.75 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 172.5 VAC | 触点额定电流 | 12A |
| 供电电压 (Vcc/Vdd) | :30V | 额定交流电压（相对地/中性线） | :240V |
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.014 | 包装方式 | Tube |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :29mm |
| 引脚间距 | :3.5mm | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | Through Hole |
| 触头材料 | Silver Nickel | 端接样式 | PCB |
| 接触件端接 | PCB | 典型触点布局 | SPDT |
产品信息
| 系列 | RT1 | 产品特性 | Insulation - Class F, Sealed - Fully |
| 继电器类型 | General Purpose | 其他规格 | :70% |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 70°C |
文档与媒体
相关型号
RT114730
TE Connectivity / Schrack
General Purpose Relays SPDT 12A 230VAC GEN PURPOSE RELAY RELAY GEN PURPOSE SPDT 12A 230V SPDT PCB relay, 3.5mm pin, 12A 230Vac Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Electromechanical Relay SPDT 12A 230VAC 32.5KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemInput Voltage = 230 VAC RELAY, PCB, SPCO, 230VAC SPDTPCBrelay,3.5mmpin,12A230Vac TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 230V RT114730
