点击放大查看

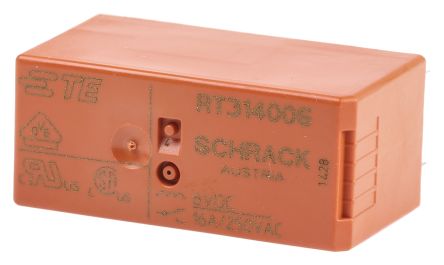

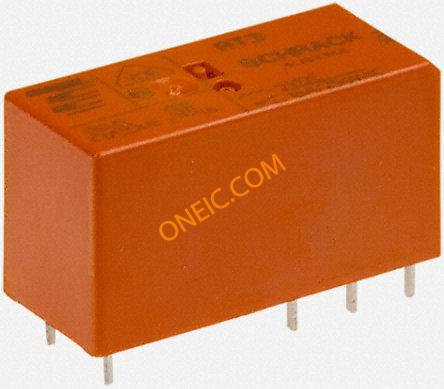

RT314006
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 16 AMP 6VDC SPDT PCB RELAY RELAY GEN PURPOSE SPDT 16A 6V SPDT PCB relay, 5mm pin, 16A 6Vdc Electromechanical Relay SPDT 16A 6VDC 90Ohm Through Hole Electromechanical Relay SPDT 16A 6VDC 90Ohm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 16 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode SPDTPCBrelay,5mmpin,16A6Vdc TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 6V dc RT314006 |
| 分类 |
商业参数
| 其他名称 | 9-1393239-3 | 零件号别名 | 9-1393239-3 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 400 mW |
| 线圈电流 | 66.7mA | 释放时间 | 6ms |
| 输入功率 | 400 | 核心电压 | 4000 |
| 额定电压 | 250 | 线圈电阻 | 90 Ohms |
| 浪涌电流 | 16 | 供电电压 | 6 V |
| 开关电压 | 400VAC - Max | 峰值脉冲功率 | 4 kVA |
| Vgs(th)（最大）@ Id | 0.6 VDC | 连接器阻抗 | 1 Form C (CO) |
| 跳闸电流 | 30 | 最大额定电流 | 16 |
| 输出1频率 | 单稳态、直流 | 输出浪涌功率 | 4 kVA |
| 额定电流（安培） | 10 – 20, 16 | 绝缘电阻 | 10 mm [ .394 in ] |
| 平均正向功率 | 400 mW | 集电极-发射极饱和电压（最大）@ Vge, Ic | 4.2 VDC |
| 触点额定电流 | 16 A | 放电电流（最大）（8/20µs） | 16 |
| 阳极-阴极电压（Vak）（最大） | 400 | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 14 g [ .494 oz ] | 包装方式 | Tube |
| 绝缘类型 | 继电器基极 PTI250 的跟踪指数 | 触点形式 | 1 Form C (SPDT-BM) |
| 高度（最大） | 15 – 16 | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | PCB |
| 触头材料 | Silver Nickel | 尺寸/外形 | 29 x 12.7 x 15.7mm |
| 绝缘高度 | 8 | 端接样式 | PC Pin |
| 触点数 | 1 | 初级绕组 | UL 线圈绝缘类 F |
| 接触件端接 | PCB | 绝缘直径 | 10 mm [ .394 in ] |
| 宽度/横截面 | 12 – 16 | 典型触点布局 | SPDT |
| 第一连接器安装类型 | 印刷电路板 | ||
产品信息
| 类型 | Power Relay | 系列 | RT1 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | Y |
| 继电器类型 | General Purpose | 应用领域 | 电源 |
| 应用细节 | Power | ||
环境参数
| 动作时间 | 8ms | 防护等级 | RTII |
| 工作温度 | -40°C ~ 85°C | 最高温度限值 | +85°C |
| 初始介电强度 | 1000 | ||
