首页产品分类工业电源组件和继电器功率继电器，2安培以上专用继电器MT321024

点击放大查看

MT321024

制造商	TE Connectivity Ltd.
描述	General Purpose Relays 3P TST BTN LED 24VDC RELAY GEN PURPOSE 3PDT 10A 24V 3PDT multimode relay,10A 24Vdc coil Electromechanical Relay 3PDT 20A 24VDC 475Ohm Socket Electromechanical Relay 3PDT 20A 24VDC 475Ohm Socket Product Highlights:MT SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY 3PDT-3CO 24VDC, 10A, PLUG IN RELAY, 3PCO, 24VDC RELAY,MULTIMODE,24VDC,3COCONTACTS,11PIN,W/TESTBUTTON MT321024
分类	工业电源组件和继电器功率继电器，2安培以上专用继电器

对参数有疑问？问 AI 助手

商业参数

交货时间	185 Days	子类别	Electromechanical Relay
零件号别名	7-1393091-0	产品类别	General Purpose Relays
标准包装数量	25	工厂包装数量	25

合规参数

RoHS	RoHS Compliant	海关税号	85364110
认证机构	:VDE

电气参数

线圈类型	Monostable	线圈功率	1.2 W
量程（°/s）	:TE - MT Series	线圈电流	50mA
释放时间	10ms	隔离类型	2500V rms
核心电压	:250V	线圈电阻	475 Ohms
极数	:3	输出电流	:10A
供电电压	24 V	开关电压	400VAC - Max
Vgs(th)（最大）@ Id	2.4 VDC	开关电流	10 A
介电强度	:2500V	最大额定电流	10A
输出浪涌功率	2.5 kVA	触点电压（最大）	:240V
最大触点电流	:10A	交流开关电压	:440VAC
平均正向功率	1200 mW	集电极-发射极饱和电压（最大）@ Vge, Ic	18 VDC
触点额定电流	10 A	驱动电压（最大Rds On，最小Rds On）	24VDC
额定交流电压（相对地/中性线）	:240V

机械参数

深度	35.6mm	宽度	35.5 mm
高度	57 mm	长度	35.5 mm
重量	0.077	包装方式	Tray

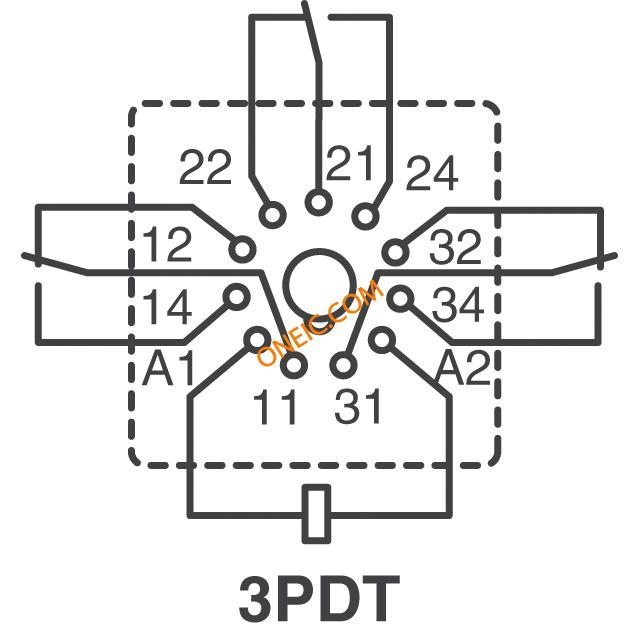

触点形式	3 Form C (3PDT-BM)	高度（最大）	:57mm
安装类型	Socketable	端子类型	Plug In
安装样式	Socket	引脚数	11
触头材料	Silver Nickel	端接样式	Plug In, 11 Pin (Octal)
接触件端接	Plug In	典型触点布局	3PDT

产品信息

类型	Ice Cube Style Relay	系列	MT
产品特性	Test Button	功能	GeneralPurpose
继电器类型	General Purpose	行业别名	7-1393091-0, MT321024
其他规格	:80%	应用细节	General Purpose

环境参数

动作时间

15ms

工作温度

-40°C ~ 60°C

文档与媒体

PDF 文档

1717886.pdf
