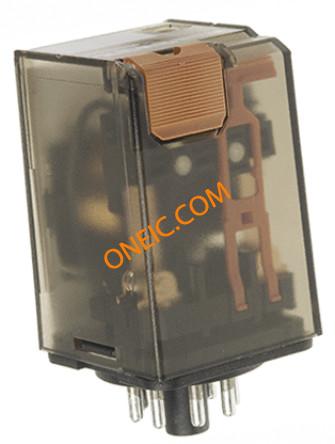

MT221110
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 10A 110VDC PWR MULTIMODE RELAY RELAY GEN PURPOSE DPDT 10A 110V RELAY, MULTIMODE, 110 VDC, 2 CO CONTACTS Electromechanical Relay DPDT 20A 110VDC 10KOhm Socket Electromechanical Relay DPDT 20A 110VDC 10KOhm Socket Product Highlights:MT SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY,MULTIMODE,110VDC,2COCONTACTS,8PIN,W/TESTBUTTON MT221110 |
| 分类 |
商业参数
| 其他名称 | 5-1393090-3 | 零件号别名 | 5-1393090-3 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.2 W |
| 线圈电流 | 11mA | 释放时间 | 10ms |
| 输入功率 | 1200 | 额定功率 | 1.2W |
| 隔离类型 | 2500V rms | 核心电压 | 1500 – 2500 |
| 额定电压 | 110VDC | 线圈电阻 | 10000 Ohms |
| 浪涌电流 | 10 | 供电电压 | 110VDC |
| 开关电压 | 400VAC - Max | Vgs(th)（最大）@ Id | 11.5 VDC |
| 连接器阻抗 | 2 Form C (CO) | 开关电流 | 10 A |
| 跳闸电流 | 20 | 最大额定电流 | 10A |
| 输出1频率 | 单稳态、直流 | 输出浪涌功率 | 2.5 kVA |
| 额定电流（安培） | 5 – 10, 16 | 绝缘电阻 | 4 mm [ .157 in ] |
| 直流开关电压 | 110V dc | 平均正向功率 | 1200 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 82.5 VDC | 触点额定电流 | 10A |
| 输出源/灌电流 | 10mA @ 12V | 放电电流（最大）（8/20µs） | 10 |
| 阳极-阴极电压（Vak）（最大） | 400 | 驱动电压（最大Rds On，最小Rds On） | 110VDC |
机械参数
| 宽度 | 35.5 mm | 高度 | 57 mm |
| 长度 | 35.5 mm | 重量 | 80 g [ 2.824 oz ] |
| 包装方式 | Bulk | 触点形式 | 2 Form C (DPDT-BM) |
| 致动器类型 | DC | 安装类型 | Socketable |
| 端子类型 | Plug In | 安装样式 | Socket |
| 引脚数 | 8 | 触头材料 | Silver Nickel |
| 绝缘高度 | 3 – 5.5 | 端接样式 | Plug In, 8 Pin (Octal) |
| 触点数 | 2 | 初级绕组 | UL 线圈绝缘类 B |
| 接触件端接 | Plug In | 介电材料 | 2500 |
| 绝缘直径 | 2.8 mm [ .11 in ] | 宽度/横截面 | 30 – 40 |
| 典型触点布局 | DPDT | 第一连接器安装类型 | 插座 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | MT |
| 产品特性 | Test Button | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | MultimodeRelayMT |
| 应用细节 | General Purpose | ||
环境参数
| 动作时间 | 15ms | 防护等级 | RTI |
| 工作温度 | -40°C ~ 60°C | 初始介电强度 | 1500 |
