点击放大查看

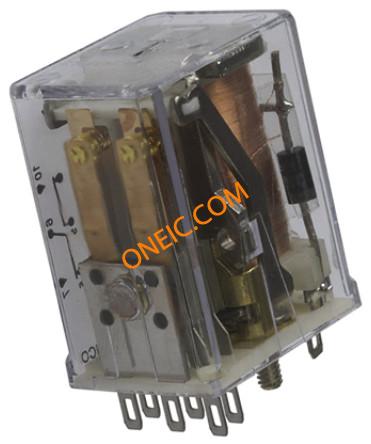

R10-E1Z4-V2.5K
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT2A 48VDC 2.5KOhm GEN PURPOSE RELAY RELAY GEN PURPOSE 4PDT 2A 48V Relay,E-Mech,GenPurp,4PDT,Cur-Rtg2A,Ctrl Electromechanical Relay 4PDT 2A 48VDC 2.5KOhm Plug-In Electromechanical Relay 4PDT 2A 48VDC 2.5KOhm Plug-In Product Highlights:R10 SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 2 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode Relay;E-Mech;GenPurp;4PDT;Cur-Rtg2A;Ctrl-V48DC;Stud;Plug-in/Solder;Pwr-Rtg2.2W R10-E1Z4-V2.5K=R10 |
| 分类 |
商业参数
| 其他名称 | 8-1393766-0 | 零件号别名 | 8-1393766-0 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | No | 标准 | UL,CSA,RoHS |
| 零件状态 | 8-1393766-0 | ||
电气参数
| 线圈类型 | Bifurcated, Monostable | 线圈功率 | 500 mW |
| 输入功率 | 900 | 核心电压 | 500 – 1000 |
| 额定电压 | 120 | 线圈电阻 | 2500 Ohms |
| 供电电压 | 48 VDC | 开关电压 | 120VAC, 30VDC - Max |
| 连接器阻抗 | 4 Form C (CO) | 最大额定电流 | 0.100A |
| 输出1频率 | 单稳态、直流 | 额定电流（安培） | 0 – 2, 16 |
| 绝缘电阻 | 1000 | 平均正向功率 | 500 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 36 VDC | 触点额定电流 | 2A |
| 输出源/灌电流 | 1mA @ 12V | 初始电阻（最小） | 10000 |
| 驱动电压（最大Rds On，最小Rds On） | 48VDC | ||
机械参数
| 宽度 | 18.7 mm | 高度 | 30.2 mm |
| 长度 | 29.6 mm | 重量 | 40 g [ 1.41 oz ] |
| 包装方式 | Bulk | 端接方式 | Plug-In |
| 触点形式 | 4 Form C (4PDT-BM) | 触头类型 | 分叉/双触点 |
| 高度（最大） | 30 – 40 | 致动器类型 | DC |
| 安装类型 | Socketable | 端子类型 | Plug In |
| 安装样式 | Socket | 引脚数 | 16 |
| 触头材料 | Silver | 端接样式 | Quick Connect |
| 触点数 | 4 | 初级绕组 | 敏感版本 |
| 接触件端接 | Terminals | 介电材料 | 1000 |
| 宽度/横截面 | 16 – 20 | 典型触点布局 | 4PDT |
| 第一连接器安装类型 | 插座 | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | R10 |
| 功能 | GeneralPurpose | 继电器类型 | General Purpose |
| 制造商全称 | R10Series | 应用细节 | General Purpose |
环境参数
| 防护等级 | RTI | 工作温度 | -55°C ~ 75°C |
| 初始介电强度 | 500 | ||
