点击放大查看

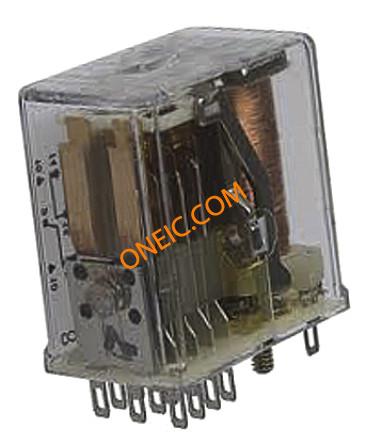

R10-E1Y4-V700
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT PLG-N 700 OHMS RELAY GEN PURPOSE 4PDT 3A 24V Relay,E-Mech,GenPurp,4PDT,Cur-Rtg2A,Ctrl Electromechanical Relay 4PDT 3A 24VDC 700Ohm Plug-In Electromechanical Relay 4PDT 3A 24VDC 700Ohm Plug-In Product Highlights:R10 SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, PLUG-IN, 4PCO, 26VDC Relay;E-Mech;GenPurp;4PDT;Cur-Rtg2A;Ctrl-V3-115DC;Vol-Rtg120/28AC/DC;16Pin R10-E1Y4-V700=R10 |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 5-1393766-7 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | UL,CSA,RoHS |
| 海关税号 | 85369010 | 零件状态 | 5-1393766-7 |
| 认证机构 | :CSA | ||
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 900 mW |
| 量程（°/s） | :TE - R10 Series | 线圈电流 | 34.29mA |
| 额定电压 | 240VAC | 线圈电阻 | 700 Ohms |
| 极数 | :4 | 供电电压 | 24VDC |
| 开关电压 | 120VAC, 30VDC - Max | 击穿电压 | :1000VAC |
| 最大额定电流 | 2A | 必须动作电压 | :18VDC |
| 最大触点电流 | :3A | 交流开关电压 | :115VAC |
| 直流开关电压 | :28VDC | 平均正向功率 | 900 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 3A |
| 数字供电电压 | :28V | 供电电压 (Vcc/Vdd) | :28V |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | 额定交流电压（相对地/中性线） | :240V |
机械参数
| 深度 | 0.736in | 宽度 | 18.7 mm |
| 高度 | 1.189in | 长度 | 1.166in |
| 重量 | 0.003 | 包装方式 | Tray | Box |
| 端接方式 | :Plug-in / Solder Terminals | 触点形式 | 4PDT (4 Form C) |
| 高度（最大） | :30.15mm | 安装类型 | Socketable |
| 端子类型 | Plug In | 安装样式 | Socket |
| 引脚数 | 16 | 触头材料 | Silver (Ag) |
| 尺寸/外形 | 1.166in.Lx0.736in.Wx1.189in.H | 端接样式 | Plug In |
| 接触件端接 | Plug In | 典型触点布局 | 4PDT |
| 外壳与棱镜材料 | :Polycarbonate | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | R10 |
| 功能 | GeneralPurpose | 继电器类型 | General Purpose |
| 制造商全称 | R10Series | 行业别名 | 5-1393766-7, R10-E1Y4-V700 |
| 应用细节 | General Purpose | ||
环境参数
| 工作温度 | -55°C ~ 75°C | ||
