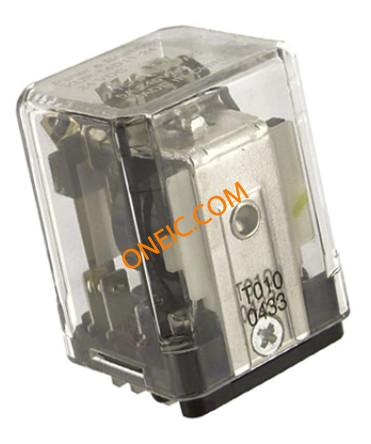

KUP-14D11-24

点击放大查看

KUP-14D11-24

制造商
TE Connectivity Ltd.
描述General Purpose Relays 3P PLN QC/SLDR 24VDC RELAY GEN PURPOSE 3PDT 5A 24V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg5A Electromechanical Relay 3PDT 5A 24VDC 472Ohm Socket Electromechanical Relay 3PDT 5A 24VDC 472Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 3PDT, 24VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;3PDT;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg120AC;11Pin KUP-14D11-24=KU
分类
工业电源组件和继电器功率继电器，2安培以上专用继电器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名1-1393118 1-1393118-0产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364900零件状态1-1393118-0

电气参数

线圈类型Monostable线圈功率1.25 W
量程（°/s）:TE - KUP Series线圈电流51 mA
释放时间10ms额定电压120VAC
线圈电阻472 Ohms承载电流:10A
输出电流:5A供电电压24 V
开关电压240VAC - Max最大额定电流5A
触点电压（最大）:240V平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic18 VDC触点额定电流5 A
数字供电电压:28V驱动电压（最大Rds On，最小Rds On）24VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.077包装方式Tray | Box
端接方式QuickConnect触点形式3 Form C (3PDT-BM)
安装类型Socketable端子类型Quick Connect
安装样式Panel引脚数11
触头材料Silver尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局3PDT

产品信息

类型Ice Cube Style Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUPSeries
行业别名1-1393118-0, KUP-14D11-24应用细节General Purpose

环境参数

动作时间15ms工作温度-45°C ~ 70°C

文档与媒体

PDF 文档
1572354.pdf
