KUP-11D15-12

点击放大查看

KUP-11D15-12

制造商
TE Connectivity Ltd.

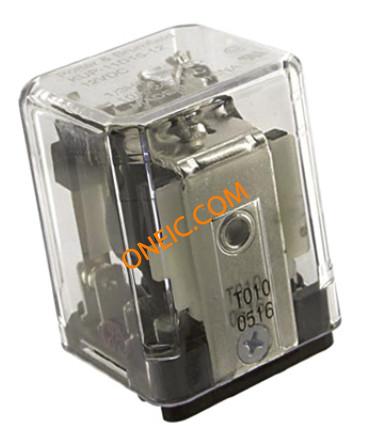

描述General Purpose Relays DPDT PLAIN 12VDC RELAY GEN PURPOSE DPDT 10A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 12VDC 120Ohm Socket Electromechanical Relay DPDT 10A 12VDC 120Ohm Socket Product Highlights:KUP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V12DC;Vol-Rtg240/28AC/DC;9Pin KUP-11D15-12=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名4-1393117-4产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
零件状态4-1393117-4

电气参数

线圈类型Monostable线圈功率1.2 W
线圈电流100 mA释放时间10ms
输入功率1200核心电压1500 – 2500
额定电压300VAC线圈电阻120 Ohms
浪涌电流10供电电压12 V
开关电压240VAC - Max连接器阻抗2 Form C (CO)
跳闸电流10最大额定电流10A
输出1频率单稳态、直流额定电流（安培）5 – 10, 16
绝缘电阻2200平均正向功率1.2 W
集电极-发射极饱和电压（最大）@ Vge, Ic9 VDC触点额定电流10A
输出源/灌电流300mA @ 12V初始电阻（最小）100
放电电流（最大）（8/20µs）10驱动电压（最大Rds On，最小Rds On）12VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量85 g [ 2.988 oz ]包装方式Tray | Box
端接方式QuickConnect触点形式2 Form C (DPDT-BM)
高度（最大）40 – 50致动器类型DC
安装类型Socketable端子类型Quick Connect
安装样式Panel引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)触点数2
初级绕组UL 线圈绝缘类 B接触件端接Quick Connect
介电材料2200宽度/横截面30 – 40
典型触点布局DPDT第一连接器安装类型插座

产品信息

类型Ice Cube Style Relay系列KUP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUPSeries
行业别名4-1393117-4, KUP-11D15-12应用细节General Purpose

环境参数

动作时间15ms防护等级RTI
工作温度-45°C ~ 70°C初始介电强度1200

文档与媒体

在线文档
KUP-11D15-12?RQPN=KUP-11D15-12
