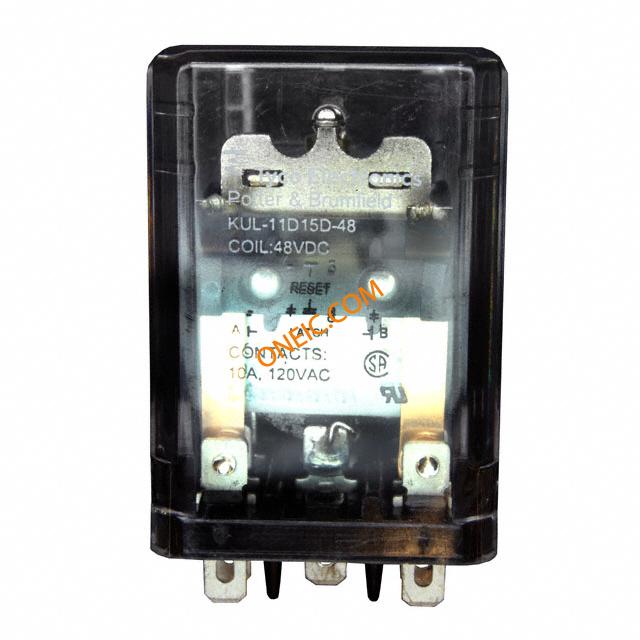

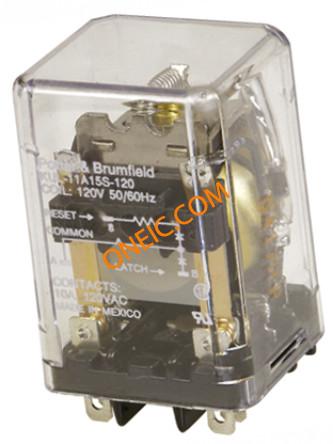

KUL-11D15D-48
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 10Amp Latching RELAY GEN PURPOSE DPDT 10A 48V Relay;E-Mech;Latching;DPDT;Cur-Rtg 10A Electromechanical Relay DPDT 10A 48VDC 1.4KOhm Socket Electromechanical Relay DPDT 10A 48VDC 1.4KOhm Socket Product Highlights:KUL SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Bistable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 48VDC, 10A, PLUG IN Relay;E-Mech;Latching;DPDT;Cur-Rtg10A;Ctrl-V48DC;Vol-Rtg240/28AC/DC;10Pin TE Connectivity 双刀双掷 Plug In 自锁继电器, 48V dc, 适用于通用应用 KUL-11D15D-48=KU |
| 分类 |
商业参数
| 零件号别名 | 3-1393115-3 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
| 零件状态 | 3-1393115-3 | ||
电气参数
| 线圈类型 | Bistable | 灯类型 | Magnetic |
| 线圈功率 | 1.65 W | 量程（°/s） | :TE - KUL Series |
| 释放时间 | 25ms | 额定电压 | 600VAC |
| 线圈电阻 | 1400 Ohms | 承载电流 | :10A |
| 输出电流 | :10A | 供电电压 | 48 VDC |
| 开关电压 | 240VAC - Max | 最大额定电流 | 10A |
| 触点电压（最大） | :250V | 平均正向功率 | 1.6 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 36 VDC | 触点额定电流 | 10A |
| 数字供电电压 | :28V | 驱动电压（最大Rds On，最小Rds On） | 48VDC |
机械参数
| 宽度 | 35.7 mm | 高度 | 54.8 mm |
| 长度 | 38.9 mm | 重量 | 0.091 |
| 包装方式 | Bulk | 端接方式 | QuickConnect |
| 触点形式 | 2 Form C (DPDT-BM) | 安装类型 | Socketable |
| 端子类型 | Quick Connect | 安装样式 | Socket |
| 引脚数 | 10 | 触头材料 | Silver Cadmium Oxide |
| 端接样式 | Plug In, QC - 0.187" (4.7mm) | 接触件端接 | Quick Connect |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KUL |
| 产品特性 | Insulation - Class B | 功能 | Latching |
| 继电器类型 | General Purpose | 制造商全称 | KULSeries |
| 应用细节 | General Purpose | ||
