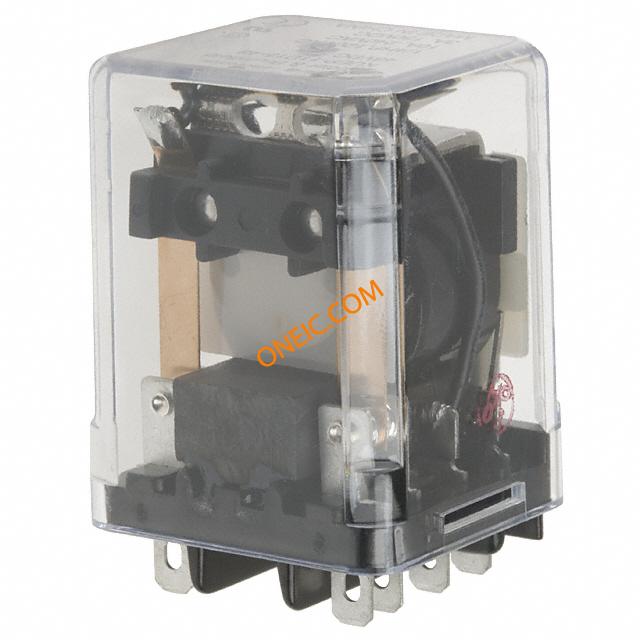

KUEP-11D15-48
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 10Amp GENERAL RELAY GEN PURPOSE DPDT 10A 48V Electromechanical Relay DPDT 10A 48VDC 1.25KOhm Plain Case Electromechanical Relay DPDT 10A 48VDC 1.25KOhm Plain Case Product Highlights:KUEP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 48VDC, 10A, PLUG IN GPRELAY,DPDT,10A,48VDC,QUICKCONNECTTERMINALS KUEP-11D15-48=KU |
| 分类 |
商业参数
| 零件号别名 | 8-1393113-8 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.85 W |
| 量程（°/s） | :TE - KUEP Series | 线圈电流 | 38mA |
| 释放时间 | 10ms | 线圈电阻 | 1260 Ohms |
| 极数 | :2 | 输出电流 | :10A |
| 供电电压 | 48 VDC | 开关电压 | 150VDC - Max |
| 触点电压（最大） | :240V | 平均正向功率 | 1.8 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 36 VDC | 触点额定电流 | 10A |
| 数字供电电压 | :170V | ||
机械参数
| 宽度 | 35.7 mm | 高度 | 48.4 mm |
| 长度 | 38.9 mm | 重量 | 0.082 |
| 包装方式 | Bulk | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Plug In, QC - 0.187" (4.7mm) |
| 接触件端接 | Tabs | 典型触点布局 | :DPDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KUEP |
| 产品特性 | Insulation - Class B | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 15ms | 工作温度 | -45°C ~ 70°C |
