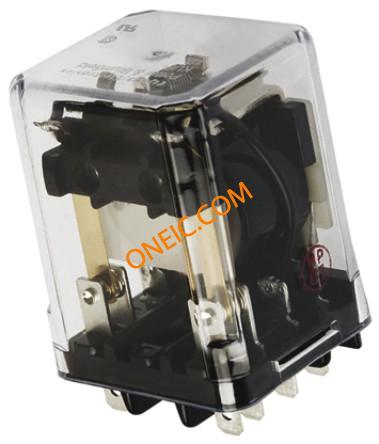

KUEP-11D15-12

点击放大查看

KUEP-11D15-12

制造商
TE Connectivity Ltd.
描述General Purpose Relays 2 Form C DPDT 2 C/O RELAY GEN PURPOSE DPDT 10A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 12VDC 80Ohm Plain Case Electromechanical Relay DPDT 10A 12VDC 80Ohm Plain Case Product Highlights:KUEP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 12VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V12DC;Vol-Rtg240/28AC/DC;9Pin KUEP-11D15-12=KU
分类
工业电源组件和继电器功率继电器，2安培以上自锁继电器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名8-1393113-6产品类别General Purpose Relays
标准包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364900零件状态8-1393113-6

电气参数

线圈类型Monostable线圈功率1.8 W
量程（°/s）:TE - KUEP Series线圈电流150mA
释放时间10ms额定电压300VAC
线圈电阻80 Ohms承载电流:10A
输出电流:10A供电电压12 V
开关电压150VDC - Max最大额定电流10A
触点电压（最大）:240V平均正向功率1.8 W
集电极-发射极饱和电压（最大）@ Vge, Ic9 VDC触点额定电流10A
数字供电电压:170V驱动电压（最大Rds On，最小Rds On）12VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.086包装方式Tray | Box
端接方式QuickConnect触点形式2 Form C (DPDT-BM)
安装类型Socketable端子类型Quick Connect
安装样式Socket引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532InchesLx1.406InchesWx1.907InchesH
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局DPDT

产品信息

类型Ice Cube Style Relay系列KUEP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUEPSeries
行业别名8-1393113-6, KUEP-11D15-12应用细节General Purpose

环境参数

动作时间15ms工作温度-45°C ~ 70°C
