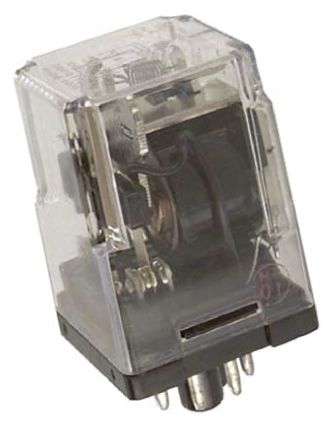

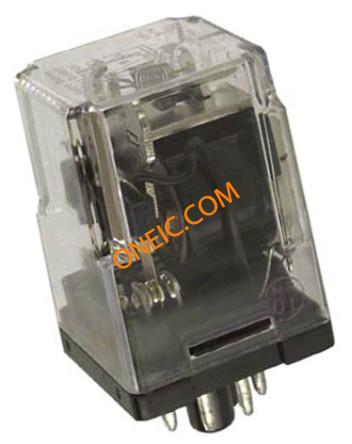

KRPA-11AY-120

点击放大查看

KRPA-11AY-120

制造商
TE Connectivity Ltd.
描述General Purpose Relays DPDT 5A 120VAC RELAY GEN PURPOSE DPDT 5A 120V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg5A,Ctrl Relay;E-Mech;Gen Purp;DPDT;Cur-Rtg 5A;Ctrl-V 120AC;Vol-Rtg 120/28AC/DC;Plug-In Electromechanical Relay DPDT 5A 120VAC 2.25KOhm Socket Electromechanical Relay DPDT 5A 120VAC 2.25KOhm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC RELAY, PLUG-IN, DPDT, 120VAC Relay;E-Mech;GenPurp;DPDT;Cur-Rtg5A;Ctrl-V120AC;Vol-Rtg120/28AC/DC;Plug-In TE Connectivity 双刀双掷 插入式 非闭锁继电器, 120V KRPA-11AY-120=KRPA
分类
工业电源组件和继电器功率继电器，2安培以上专用继电器
对参数有疑问？问 AI 助手

商业参数

交货时间91 Days子类别Electromechanical Relay
零件号别名3-1393104-6产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态3-1393104-6

电气参数

线圈类型Monostable线圈功率2.1 VA
量程（°/s）:TE - KRPA Series线圈电流17.5 mA
核心电压:240V额定电压240VAC
线圈电阻2250 Ohms极数:2
输出电流:5A供电电压120 V
开关电压240VAC - Max最大额定电流5A
触点电压（最大）:240V最大触点电流:3A
平均正向功率2 VA集电极-发射极饱和电压（最大）@ Vge, Ic102 VAC
触点额定电流5A供电电压 (Vcc/Vdd):28V
驱动电压（最大Rds On，最小Rds On）120VAC额定交流电压（相对地/中性线）:240V

机械参数

深度1.469in宽度37.3 mm
高度34.9 mm长度48.8 mm
重量0.01包装方式Bulk
端接方式Plug-In触点形式2 Form C (DPDT-BM)
高度（最大）:34.9mm安装类型Socketable
端子类型Plug In安装样式Socket
引脚数8触头材料Silver
尺寸/外形1.922in.Lx1.469in.Wx1.375in.H端接样式Plug In, 8 Pin (Octal)
接触件端接Plug In典型触点布局DPDT

产品信息

类型Ice Cube Style Relay系列KRPA
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KRPASeries
行业别名3-1393104-6, KRPA-11AY-120应用细节General Purpose

环境参数

工作温度-45°C ~ 55°C

文档与媒体

PDF 文档
1717910.pdf
