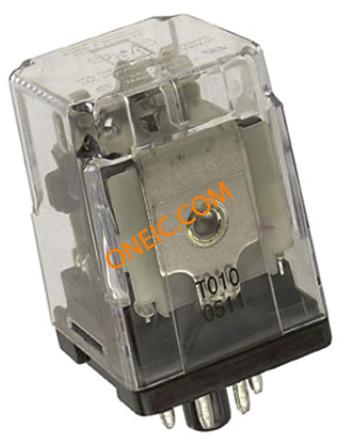

KRPA-11AG-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 8 PIN DPDT 24VAC RELAY GEN PURPOSE DPDT 10A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 24VAC 85Ohm Socket Electromechanical Relay DPDT 10A 24VAC 85Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemInput Voltage = 24 VAC Relay;E-Mech;GenPurp;DPDT;Cur-Rtg10A;Ctrl-V24AC;Vol-Rtg120/28AC/DC;Plug-In KRPA-11AG-24=RELAY,GENPUR,OCTA |
| 分类 |
商业参数
| 交货时间 | 91 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1-1393105-2 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 零件状态 | 1-1393105-2 | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 2.02 VA |
| 最大功率 | 2 | 线圈电流 | 84 mA |
| 额定输出功率 | 2 – 3 | 核心电压 | 500 – 1000 |
| 额定电压 | 240VAC | 线圈电阻 | 85 Ohms |
| 浪涌电流 | 10 | 供电电压 | 24 V |
| 开关电压 | 240VAC - Max | 连接器阻抗 | 2 Form C (CO) |
| 跳闸电流 | 10 | 最大额定电流 | 10A |
| 输出1频率 | 单稳态、交流 | 额定电流（安培） | 5 – 10, 16 |
| 绝缘电阻 | 1000 | 平均正向功率 | 2 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 20.4 VAC | 触点额定电流 | 10 A |
| 输出源/灌电流 | 300mA @ 12V | 初始电阻（最小） | 100 |
| 放电电流（最大）（8/20µs） | 10 | 驱动电压（最大Rds On，最小Rds On） | 24VAC |
机械参数
| 深度 | 1.469in | 宽度 | 37.3 mm |
| 高度 | 34.9 mm | 长度 | 48.8 mm |
| 重量 | 85 g [ 2.988 oz ] | 包装方式 | Bulk |
| 端接方式 | Plug-In | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | 50 – 60 | 致动器类型 | AC |
| 安装类型 | Socketable | 端子类型 | Plug In |
| 安装样式 | Socket | 引脚数 | 8 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.922in.Lx1.469in.Wx1.375in.H |
| 端接样式 | Plug In, 8 Pin (Octal) | 触点数 | 2 |
| 初级绕组 | UL 线圈绝缘类 B | 接触件端接 | Plug In |
| 介电材料 | 1000 | 宽度/横截面 | 30 – 40 |
| 典型触点布局 | DPDT | 第一连接器安装类型 | 插座 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KRPA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KRPASeries |
| 行业别名 | 1-1393105-2, KRPA-11AG-24 | 应用细节 | General Purpose |
环境参数
| 防护等级 | RTI | 工作温度 | -45°C ~ 55°C |
| 初始介电强度 | 1000 | ||
