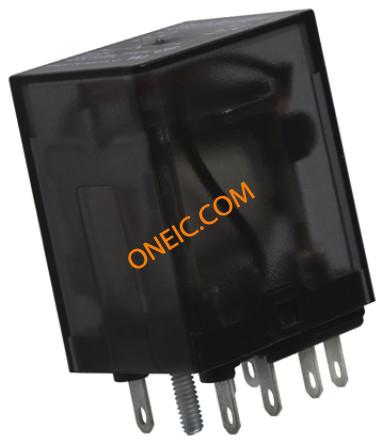

KHAU-11D11-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 3 AMP 24VDC DPDT 2 FORMC 2C/O RELAY GEN PURPOSE DPDT 3A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg3A,Ctrl Electromechanical Relay DPDT 5A 24VDC 690Ohm Socket Electromechanical Relay DPDT 5A 24VDC 690Ohm Socket Product Highlights:Relay Type = General Purpose, Multicontact, MiniatureRelay Style = GeneralKHA SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 3 A POWER RELAY, DPDT, 24VDC, 3A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg3A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;SocketMnt KHAU-11D11-24=KH |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 1-1393122-5 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 1-1393122-5 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 850 mW |
| 量程（°/s） | :TE - KHA Series | 线圈电流 | 37.5mA |
| 释放时间 | 6ms | 额定电压 | 240VAC |
| 线圈电阻 | 650 Ohms | 承载电流 | :3A |
| 输出电流 | :5A | 供电电压 | 24 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 3A |
| 触点电压（最大） | :240V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 3A |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | ||
机械参数
| 深度 | 0.858in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.002 | 包装方式 | Tray | Box |
| 端接方式 | Solder | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 端子类型 | Solder |
| 安装样式 | Socket | 引脚数 | 14 |
| 触头材料 | Silver | 尺寸/外形 | 1.111in.Lx0.858in.Wx1.375in.H |
| 端接样式 | Plug In | 接触件端接 | Solder |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KHASeries |
| 行业别名 | 1-1393122-5, KHAU-11D11-24 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
