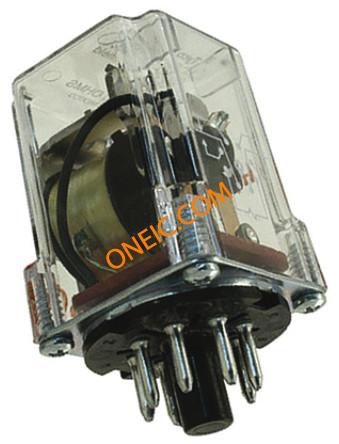

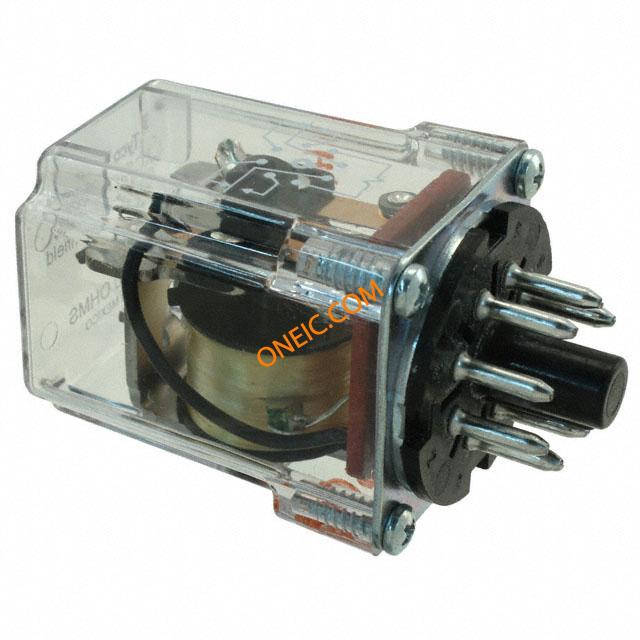

KCP-11-10000
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 2A 120VAC GEN PURPOSE RELAY RELAY GENERAL PURPOSE DPDT 2A RELAY, MONOSTABLE MAGNETIC COIL SYSTEM POWER RELAY, DPDT, 2A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,2A,120VAC,2FORMC,DPDT KCP-11-10000=KA/KB/KC/KR |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 3-1393100-8 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
| 零件状态 | 3-1393100-8 | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 250 mW |
| 线圈电流 | :5mA | 释放时间 | 10ms |
| 线圈电阻 | 10000 Ohms | 承载电流 | :5.9A |
| 供电电压 | 120V | 开关电压 | 120VAC - Max |
| 最大额定电流 | 2A | 最大触点电流 | :2A |
| 平均正向功率 | 250 mW | 触点额定电流 | 2A |
| 驱动电压（最大Rds On，最小Rds On） | 120VAC | ||
机械参数
| 宽度 | 35.71 mm | 高度 | 35.71 mm |
| 长度 | 50.8 mm | 重量 | 0.068 |
| 包装方式 | Tray | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver | 端接样式 | Plug In, 8 Pin (Octal) |
| 接触件端接 | Plug In | 典型触点布局 | DPDT |
产品信息
| 类型 | Industrial Relay | 系列 | KCP |
| 功能 | MagneticSystem | 继电器类型 | General Purpose |
| 行业别名 | 3-1393100-8, KCP-11-10000 | ||
环境参数
| 动作时间 | 20ms | 工作温度 | -35°C ~ 85°C |
