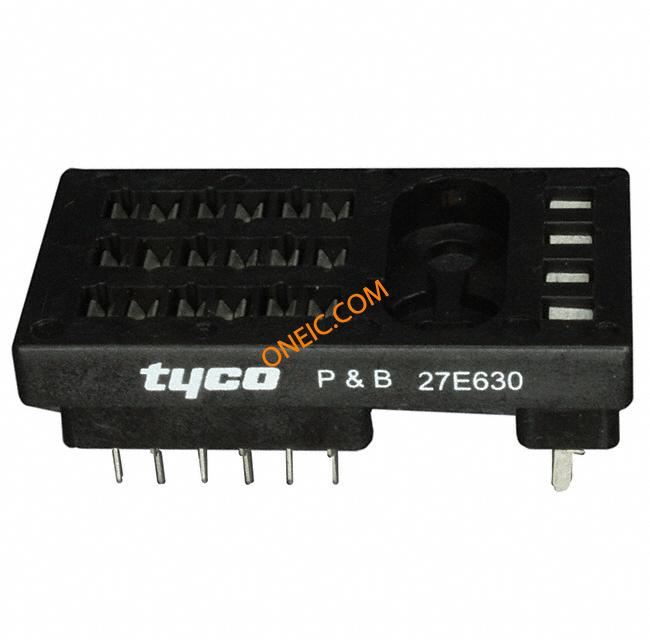

27E630
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware 6 POLE PCB SOCKET SOCKET 6 POLES IN LINE Conn Relay Socket SKT 6 POS Solder ST Thru-Hole Conn Relay Socket SKT 6 POS Solder ST Thru-Hole Product Highlights:SocketR10 SeriesNumber of Poles = 6Terminal Type = PC In-LineTerminal Length = 4.57 mm 27E630=SOCKETS |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Connector Socket |
| 零件号别名 | 4-1393143-9 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 极数 | 6 | ||
机械参数
| 安装类型 | Through Hole | 连接器类型 | 印刷电路板 |
| 插入件材料 | 弹簧黄铜 | 触头材料 | 锡 |
| 主要材料 | 酚醛树脂 | 端接样式 | PCB |
| 位数 | 22 | 兼容外壳尺寸（如TM-700等） | R10 继电器 |
| 典型触点布局 | PC 直插式 | 端子柱长度 | 4.57 mm [ .18 in ] |
产品信息
| 类型 | Socket | 系列 | R10 |
| 产品特性 | Without Grounding | 产品子类型 | 插座 |
| 附件类型 | Socket | 行业别名 | 27E630, 4-1393143-9 |
| 适用产品/相关产品 | R10 Series | ||
