点击放大查看

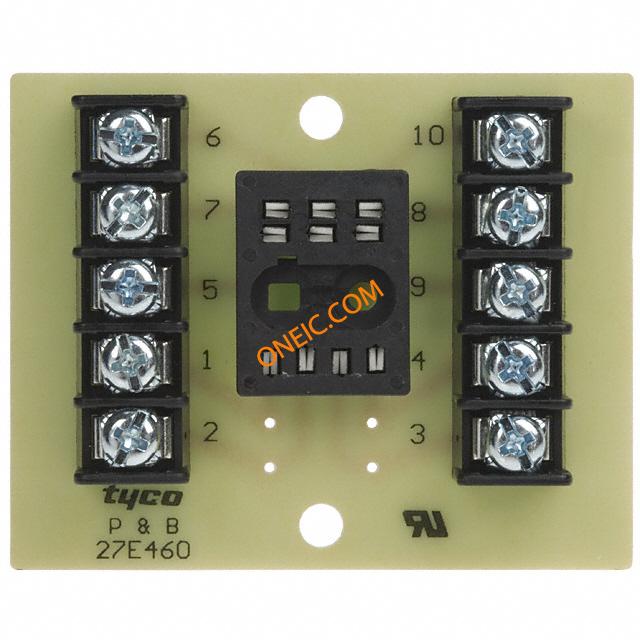

27E460
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware 2 POL SCRW TERM SCKT SOCKET SCREW TERM DP R10 RELAYS Socket; Screw; 2; Potter and Brumfield Brand; RoHS Compliant; ELV Compliant Conn Relay Socket SKT 2 POS Screw ST Panel Mount Conn Relay Socket SKT 2 POS Screw ST Panel Mount Product Highlights:Track Mount SocketR10 SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET, 7 PIN Socket,Relay;Screw;2;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E460=SOCKET,R10,,ASSY,2 POLE |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Connector Socket |
| 零件号别名 | 1393837-1 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 30 | 工厂包装数量 | 30 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 零件状态 | 1393837-1 |
电气参数
| 极数 | 2 | 最大额定电流 | :10A |
机械参数
| 重量 | 1.28 | 端接方式 | Screw |
| 安装类型 | Chassis Mount | 端子类型 | :Track |
| 连接器类型 | :Screw | 引脚数 | :7 |
| 端接样式 | Screw | 位数 | 10 |
| 接线端子类型 | Screw | ||
产品信息
| 类型 | Socket | 系列 | R10 |
| 产品特性 | Without Grounding | 制造商全称 | PotterandBrumfieldBrand |
| 附件类型 | Socket | 行业别名 | 1393837-1, 27E460 |
| 适用产品/相关产品 | R10 Series | ||
