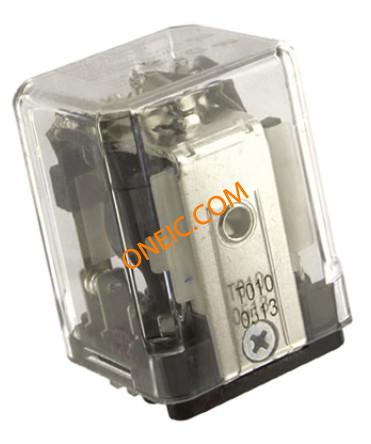

KUMP-14D18-12

点击放大查看

KUMP-14D18-12

制造商
TE Connectivity Ltd.
描述Electromechanical Relay 3PDT 15A 12VDC 120Ohm Plain Case General Purpose Relays 3P PLN QC/SLDR 12VDC RELAY GEN PURPOSE 3PDT 15A 12V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg15A Electromechanical Relay 3PDT 15A 12VDC 120Ohm Plain Case Product Highlights:KUMP SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 3PDT, 12VDC, 15A, PLUG IN Relay;E-Mech;GenPurp;3PDT;Cur-Rtg15A;Ctrl-V12DC;Vol-Rtg277AC;9Pin KUMP-14D18-12=KU
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名9-1393116 9-1393116-0产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85364110零件状态9-1393116-0

电气参数

线圈类型Monostable线圈功率1.2 W
量程（°/s）:TE - KUMP Series线圈电流100 mA
释放时间10ms额定电压277VAC
线圈电阻120 Ohm承载电流:15A
输出电流:15A供电电压12 V
开关电压277VAC - Max最大额定电流15 A
触点电压（最大）:277V最小输入电压277 V
平均正向功率1.2 W集电极-发射极饱和电压（最大）@ Vge, Ic9 VDC
触点额定电流15A数字供电电压:32V
驱动电压（最大Rds On，最小Rds On）12VDC

机械参数

深度1.406in宽度35.7 mm
高度48.4 mm长度38.9 mm
重量0.082包装方式Bulk
端接方式QuickConnect触点形式3 Form C (3PDT-BM)
安装类型Plain Case端子类型Quick Connect
安装样式Panel引脚数9
触头材料Silver Cadmium Oxide尺寸/外形1.532in.Lx1.406in.Wx1.907in.H
端接样式Plug In, QC - 0.187" (4.7mm)接触件端接Quick Connect
典型触点布局3PDT

产品信息

类型Industrial Relay系列KUMP
产品特性Insulation - Class B功能GeneralPurpose
继电器类型General Purpose制造商全称KUMPSeries
行业别名9-1393116-0, KUMP-14D18-12应用细节General Purpose

环境参数

动作时间15ms工作温度-45 to 70 °C
