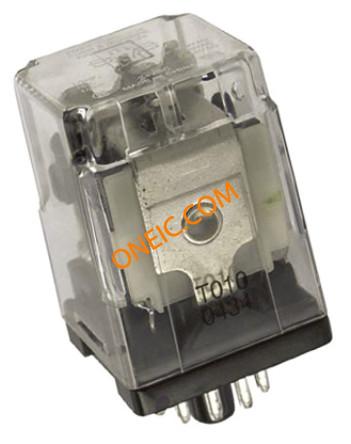

KRPA-14DG-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay 3PDT 10A 24VDC 472Ohm Socket General Purpose Relays 11 PIN 3PDT 24VDC RELAY GEN PURPOSE 3PDT 10A 24V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg10A Electromechanical Relay 3PDT 10A 24VDC 472Ohm Socket Product Highlights:KRPA SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY,GP,10A,3PDT,24VDC Relay;E-Mech;GenPurp;3PDT;Cur-Rtg10A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;Plug-In KRPA-14DG-24=KRPA |
| 分类 |
商业参数
| 交货时间 | 91 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 8-1393104-4 | 产品类别 | General Purpose Relays |
| 标准包装数量 | Trays | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 8-1393104-4 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.25 W |
| 线圈电流 | 51 mA | 额定电压 | 240VAC |
| 线圈电阻 | 472 Ohm | 极数 | :3 |
| 供电电压 | 24 V | 开关电压 | 240VAC - Max |
| 最大额定电流 | 10 A | 最大触点电流 | :10A |
| 最小输入电压 | 240 V | 平均正向功率 | 1.2 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 10A |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | 额定交流电压（相对地/中性线） | :240V |
机械参数
| 深度 | 1.469in | 宽度 | 37.3 mm |
| 高度 | 34.9 mm | 长度 | 48.8 mm |
| 重量 | 0.068 | 包装方式 | Bulk |
| 端接方式 | Plug-In | 触点形式 | 3 Form C (3PDT-BM) |
| 高度（最大） | :34.9mm | 安装类型 | Socket |
| 端子类型 | Plug In | 安装样式 | Socket |
| 引脚数 | 11 | 触头材料 | Silver Cadmium Oxide |
| 尺寸/外形 | 1.922in.Lx1.469in.Wx1.375in.H | 端接样式 | Plug In, 11 Pin (Octal) |
| 接触件端接 | Plug In | 典型触点布局 | 3PDT |
产品信息
| 类型 | General Purpose Relay | 系列 | KRPA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KRPASeries |
| 行业别名 | 8-1393104-4, KRPA-14DG-24 | 应用细节 | General Purpose |
