9-1393243-2
| 制造商 | Bosch Sensortec GmbH |
| 描述 | Electromechanical Relay DPDT 15A 115VAC 8.1KOhm Through Hole General Purpose Relays RT425615 Industrial Relays (General Purpose) RELAY GEN PURPOSE DPDT 8A 115V Relay,power,PCB,DPDT,8A,115Vac,gold cont Electromechanical Relay DPDT 15A 115VAC 8.1KOhm Through Hole Product Highlights:Relay Type = Power PCB RelayRelay Style = PCBRT2 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 8 A TE Connectivity 双刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 115V ac RT425615 |
| 分类 |
商业参数
| 其他名称 | RT425615 | 产品类别 | General Purpose Relays |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 0.76 VA |
| 最大功率 | .76 | 线圈电流 | 6.6mA |
| 隔离类型 | 5000V rms | 核心电压 | 4000 |
| 额定电压 | 250 | 线圈电阻 | 8.1 KOhm |
| 浪涌电流 | 8 | 供电电压 | 115 V |
| 开关电压 | 400VAC - Max | 峰值脉冲功率 | 2 kVA |
| Vgs(th)（最大）@ Id | 17.3 VAC | 连接器阻抗 | 2 Form C (CO) |
| 开关电流 | 8 A | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | 输出1频率 | 单稳态、交流 |
| 输出浪涌功率 | 2000 VA | 额定电流（安培） | 5 – 10, 16 |
| 绝缘电阻 | 10 mm [ .394 in ] | 最小输入电压 | 400 V |
| 交流开关电压 | 400V 交流 | 平均正向功率 | 0.75 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 86.3 VAC | 触点额定电流 | 8A |
| 峰值脉冲电流（8/20µs） | 8 A | 放电电流（最大）（8/20µs） | 8 |
| 阳极-阴极电压（Vak）（最大） | 400 | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 13 g [ .459 oz ] | 包装方式 | Tube |
| 绝缘类型 | 继电器基极 PTI250 的跟踪指数 | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | 15 – 16 | 安装类型 | Through Hole |
| 端子类型 | Through Hole | 安装样式 | Through Hole |
| 触头材料 | Silver Nickel 90/10/Gold Plated | 尺寸/外形 | 29 x 12.7 x 15.7mm |
| 绝缘高度 | 8 | 端接样式 | PC Pin |
| 触点数 | 2 | 初级绕组 | UL 线圈绝缘类 F |
| 绝缘直径 | 10 mm [ .394 in ] | 绝缘材料 - 类型 | 5kV rms |
| 宽度/横截面 | 12 – 16 | 典型触点布局 | DPDT |
| 第一连接器安装类型 | 印刷电路板, 插座 | ||
产品信息
| 类型 | Power Relay | 系列 | RT2 |
| 产品特性 | Insulation - Class F, Sealed - Flux Protection | 功能 | Y |
| 继电器类型 | General Purpose | 应用领域 | 电源 |
| 应用细节 | Power | ||
环境参数
| 防护等级 | RTII | 工作温度 | -40 to 70 °C |
| 初始介电强度 | 1000 | ||
相关型号
RT7872P
TE Connectivity / Schrack
Relay Sockets & Hardware DIN RAIL MOUNT 2POLE SOCKET W/O SCREW FOR DINRAIL Relay Socket For Use With RT Series SOCKET, DIN, 5MM PITCH, CLAMP TERM Socket,Relay;Premium,2Pole,DIN-railMount,LogicalArrangement,Screwless
RP78602
TE Connectivity / Schrack
Relay Sockets & Hardware PCB TERM RT SOCKET PCB TERMINAL RT SERIES Relay Socket For Use With RP Series, RT Series, RY Series Conn Relay Socket SKT Solder ST Thru-Hole Conn Relay Socket SKT Solder ST Thru-Hole Product Highlights:SocketRP Series, RT Series, RY SeriesNumber of Poles = 1Terminal Type = PCWithout Grounding Provision SOCKET, PCB, 5.0MM FOOTPRINT Socket,Relay;forRP,RT,andRYSeries,1Pole 继电器插座, 适用于RP Series, RT Series, RY Series RP78602
RT78726
te connectivity / p&b
Conn Relay Socket SKT 5 POS Screw ST Panel Mount Relay Sockets & Hardware Socket with screw type terminals SOCKET 5MM W/SCREW TERM DIN SOCKET, DIN, 5MM PITCH, SCREW TERM Socket,Relay;XTSERIES,DINRAILMOUNT,SCREWTERMINALS
1860306-1
te connectivity / p&b

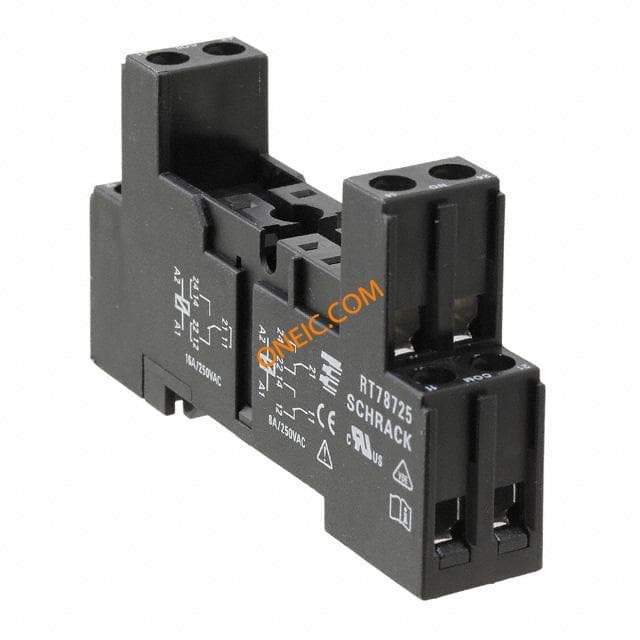

Conn Relay Socket SKT 8 POS Screw ST Panel Mount RT78725 SOCKET 5MM W/SCREW TERM DIN RT78725 Search Keywords:relay connectors Conn Relay Socket SKT 8 POS Screw ST Panel Mount Product Highlights:SocketRT SeriesTerminal Type = Screw, DIN Rail Snap-MountWithout Grounding ProvisionSearch Keywords:relay connectors Relay socket 2-pole, 1860306-1, TE Connectivity
