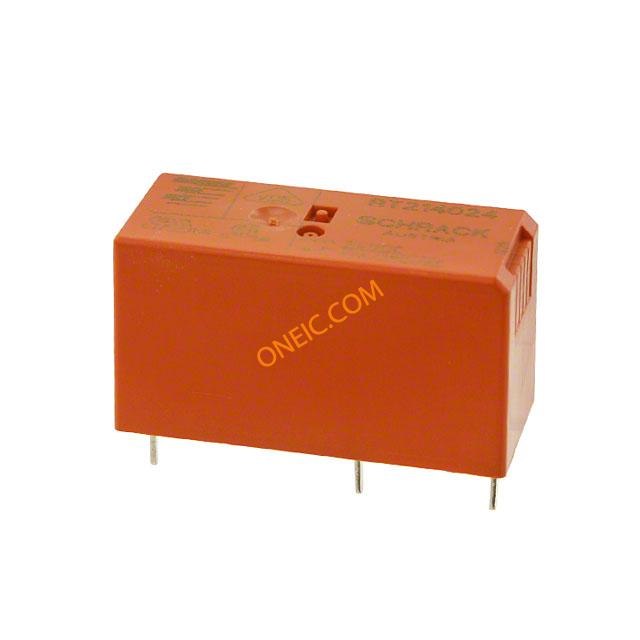

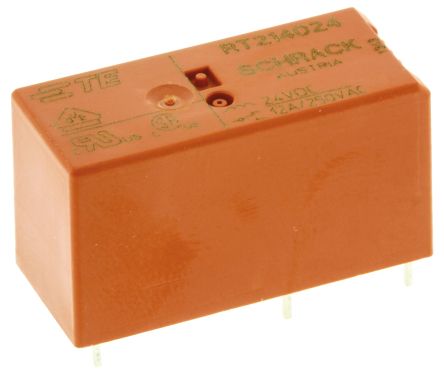

5-1393239-5
| 制造商 | Lumex, Inc. |
| 描述 | Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole General Purpose Relays RT214024 RELAY GEN PURPOSE SPDT 12A 24V RT214024,24VDC,1POLE,12A,5MM Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole Product Highlights:RT1 SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 12 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode RELAY, POWER, PCB, 24VDC, 12A General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1C SPDT Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 24 VDC 400 mW, 5-1393239-5, TE Connectivity TE Connectivity 单刀双掷 PCB（印刷电路板）安装 非闭锁继电器, 24V dc |
| 分类 |
商业参数
| 产品类别 | General Purpose Relays | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 400 mW |
| 量程（°/s） | :TE - Power PCB Relay RT1 Series | 线圈电流 | 16.7mA |
| 释放时间 | 6ms | 隔离类型 | 5000V rms |
| 线圈电阻 | 1.44 kOhms | 输出电流 | :12A |
| 供电电压 | 24 VDC | 开关电压 | 400VAC - Max |
| Vgs(th)（最大）@ Id | 2.4 VDC | 开关电流 | 12 A |
| 输出浪涌功率 | 3000 VA | 触点电压（最大） | :250V |
| 最大触点电流 | :12A | 平均正向功率 | 400 mW |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 16.8 VDC | 触点额定电流 | 12 A |
| 额定交流电压（相对地/中性线） | :250V | ||
机械参数
| 深度 | 12.7mm | 宽度 | 12.7 mm |
| 高度 | 15.7 mm | 长度 | 29 mm |
| 重量 | 0.01 | 包装方式 | Tube |
| 触点形式 | 1 Form C (SPDT-BM) | 高度（最大） | :15.7mm |
| 安装类型 | Through Hole | 端子类型 | Through Hole |
| 安装样式 | Through Hole | 触头材料 | Silver Nickel |
| 端接样式 | PC Pin | 接触件端接 | Pin |
| 典型触点布局 | SPDT | ||
产品信息
| 类型 | Power Relay | 产品特性 | Insulation - Class F, Sealed - Flux Protection |
| 继电器类型 | General Purpose | 应用细节 | Power |
环境参数
| 动作时间 | 8ms | 工作温度 | -40°C ~ 85°C |
