2-1393115-7

点击放大查看

2-1393115-7

制造商
TE Connectivity Ltd.

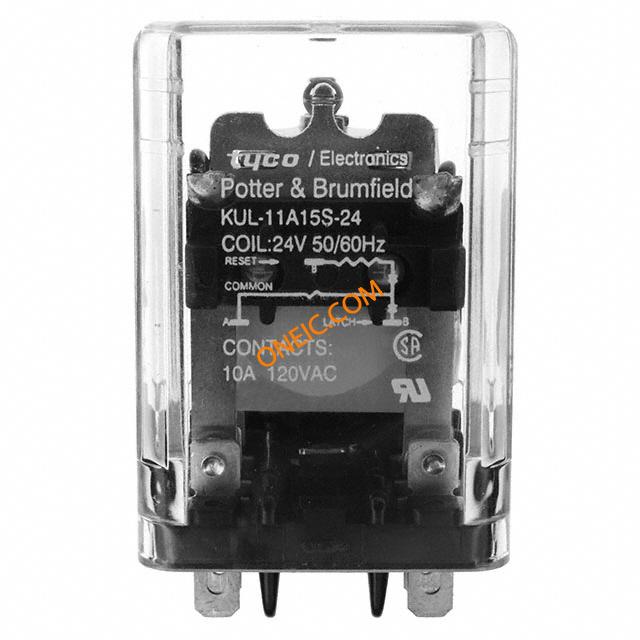

描述Electromechanical Relay DPDT 10A 24VAC 176Ohm Socket GPR Panel Plug-In Relays RELAY GEN PURPOSE DPDT 10A 24V
分类
工业电源组件和继电器固态继电器机电继电器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
抗辐射加固No

电气参数

线圈类型Latching, Single Coil释放时间25ms
释放范围（时间）25ms可见输出No
额定电压28线圈电阻176 Ohms
推频（MHz/V）No供电电压24VAC
开关电压240VAC - Max交流输入电压24V
钳位电压20.4VAC额定交流电压250V
二极管配置No最大额定电流10
最小输入电压250集电极-发射极饱和电压（最大）@ Vge, Ic20.4 VAC
触点额定电流10A触点额定值 @ 电压10A
直流反向电压（Vr）（最大）28V高侧电压（自举）最大20.4VAC

机械参数

密封Unsealed深度35.71 mm
高度54.8 mm包装方式Tray|Box
触点形式2 Form C触点形状DPDT (2 Form C)
安装类型Socket安装样式Socket
封装形式Dust Cover冷却的封装Dust Cover
操作力25ms触头材料Silver Cadmium Oxide
总长度38.9 mm端接样式0.187Quick Connect/Solder
触点数9位数9
典型触点布局DPDT

产品信息

类型Industrial Relay系列KUL, Potter & Brumfield
产品特性Insulation - Class B继电器类型Latching Single Coil
按下测试类型No

环境参数

动作时间25ms工作温度-45°C ~ 70°C
