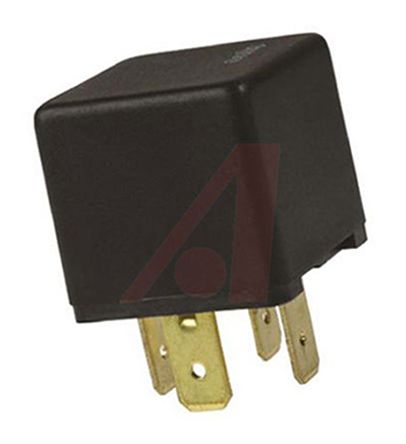

1432876-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | 24V, FORM C, AGSNO, DIODE, BKT Automotive Relays RELAY AUTO 24V SPDT PLUG-IN General Purpose / Industrial Relays RELAY AUTO 24V SPDT PLUG-IN RELAY AUTOMOTIVE SPDT 40A 24V Electromechanical Relay SPDT 90A 24VDC 360Ohm Plug-In AUTOMOTIVE RELAY, SPDT, 24VDC, 40A Relay TE Connectivity 单刀双掷 插入式 汽车继电器, 90 A, 24V dc |
| 分类 |
商业参数
| 产品类别 | Automotive Relays | 标准包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
电气参数
| 线圈类型 | Non Latching | 线圈功率 | 1.6 W |
| 线圈电流 | 66.7mA | 释放时间 | 13ms |
| 线圈电阻 | 360 Ohms | 供电电压 | 24VDC |
| 开关电压 | 28VDC - Nom | Vgs(th)（最大）@ Id | 2.4 VDC |
| 最大触点电流 | :40A | 集电极-发射极饱和电压（最大）@ Vge, Ic | 15.6 VDC |
| 触点额定电流 | 40A | 供电电压 (Vcc/Vdd) | :16V |
机械参数
| 宽度 | 26.5 mm | 高度 | 24.5 mm |
| 长度 | 26.5 mm | 重量 | 0.032 |
| 包装方式 | Bulk | 触点形式 | SPDT (1 Form C) |
| 高度（最大） | :24.5mm | 安装类型 | Chassis Mount |
| 安装样式 | Socket | 触头材料 | Silver Tin Oxide (AgSnO) |
| 端接样式 | Plug In, QC - 0.250" (6.3mm) | 接触件端接 | Plug In |
| 典型触点布局 | :SPDT | ||
产品信息
| 类型 | Automotive Relays | 产品特性 | Diode |
| 继电器类型 | Automotive | ||
环境参数
| 动作时间 | 10ms | 工作温度 | -40°C ~ 85°C |
