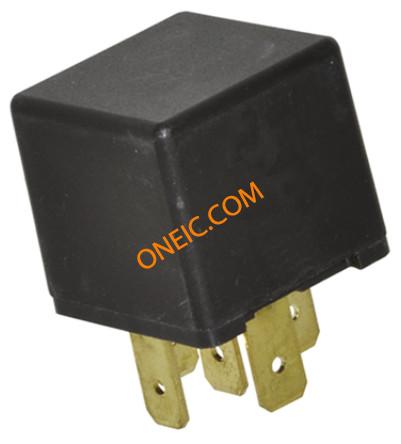

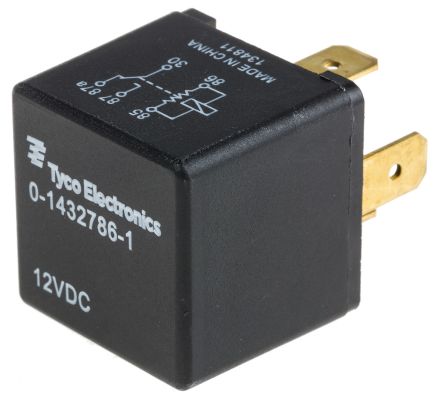

1432786-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Automotive Relays SPDT QC 12VDC W/RES Mini-ISO General Purpose / Industrial Relays SPDT QC 12VDC W/RES Mini-ISO RELAY AUTOMOTIVE SPDT 30A 12V Relay,MINI-ISO,PI,12V,FormC,AgSnO,Resist AUTOMOTIVE RELAY, SPDT, 12VDC, 30A Relay,MINI-ISO,PI,12V,FormC,AgSnO,Resistor TE Connectivity 单刀双掷 插入式 非闭锁继电器, 12V |
| 分类 |
商业参数
| 产品类别 | Automotive Relays | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
电气参数
| 线圈类型 | Standard | 线圈功率 | 1.8 W |
| 线圈电流 | 150 mA | 释放时间 | 13ms |
| 额定电压 | 14VDC | 线圈电阻 | 79.5 Ohms |
| 供电电压 | 12 VDC | 开关电压 | 14 VDC |
| Vgs(th)（最大）@ Id | 1.2 VDC | 最大额定电流 | 40/Contact A |
| 最大触点电流 | :40A | 直流开关电压 | 14V dc |
| 平均正向功率 | 1.8 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 7.8 VDC |
| 触点额定电流 | 30 A | 供电电压 (Vcc/Vdd) | :16V |
| 驱动电压（最大Rds On，最小Rds On） | 12VDC | ||
机械参数
| 深度 | 26.5 mm | 高度 | 24.5 mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 端接方式 | Solder | 触点形式 | 1 Form C (SPDT-BM) |
| 高度（最大） | :24.5mm | 安装类型 | Through Hole |
| 安装样式 | Socket | 引脚数 | 5 |
| 触头材料 | Silver Tin Oxide | 总长度 | 26.5 mm |
| 端接样式 | Plug In, QC - 0.250" (6.3mm) | 触点数 | 4 POS |
| 接触件端接 | Plug In | 典型触点布局 | SPDT |
产品信息
| 类型 | Power | 系列 | :VF3 |
| 已删除 | Compliant | 产品特性 | Resistor |
| 功能 | Automotive | 继电器类型 | Automotive |
| 制造商全称 | VF4Series | 端口数 | 1 Port |
| 应用细节 | Automotive | ||
环境参数
| 动作时间 | 10ms | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
