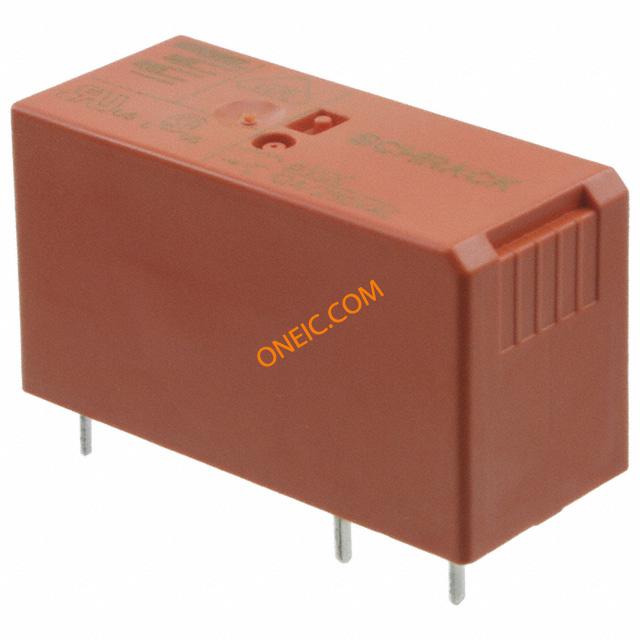

1393239-8

制造商	TE Connectivity Ltd.
描述	Electromechanical Relay SPDT 12A 6VDC 90Ohm Through Hole General Purpose Relays RT114006 Reinforced PCB Relays up to 16A RELAY GEN PURPOSE SPDT 12A 6V General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 1C SPDT Current: 12 Amps Mounting: PC Board Operating Function: Single Side Stable
分类	工业电源组件和继电器功率继电器，2安培以上专用继电器

对参数有疑问？问 AI 助手

商业参数

产品类别	General Purpose Relays	标准包装数量	Bulk
工厂包装数量	500

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C
认可国家	UL Recognized, CSA Certified, VDE Component Mark	RoHS/ELV合规声明	Converted to comply with RoHS directive
FCC Part 68隔离	No

电气参数

电流	12 Amps	线圈类型	Non Latching
核心类型	Monostable	线圈功率	400 mW
线圈电流	66.7mA	释放时间	6ms
输入功率	400 mW	可见输出	Without
线圈电阻	90 Ohms	供电电压	6VDC
开关电压	400VAC - Max	Vgs(th)（最大）@ Id	0.6 VDC
二极管配置	Without	额定电流 - 串联	Sensitive
集电极-发射极饱和电压（最大）@ Vge, Ic	4.2 VDC	触点额定电流	12A

机械参数

包装方式	Tube	端接方式	Through Hole
触点形式	SPDT (1 Form C)	致动器类型	DC
安装类型	Through Hole	线圈绝缘等级	n/a
触头材料	Silver Nickel (AgNi)	外形尺寸长x宽x高	29.00 x 12.70 x 15.70 [1.142 x .500 x .618]
端接样式	PC Pin	典型触点布局	1C SPDT
供应商器件封装	Flux-Tight

产品信息

备注	n/a	类型	Relays
产品特性	Insulation - Class F, Sealed - Flux Protection	功能	Single Side Stable
极性	No	继电器类型	General Purpose
卡标准	General Purpose Relay	接线图	Code 1

环境参数

动作时间

8ms

工作温度

-40°C ~ 85°C
