1-1393122-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay DPDT 5A 24VDC 690Ohm Socket GPR Panel Plug-In Relays RELAY GEN PURPOSE DPDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 5 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| 认可国家 | UL Recognized, CSA Certified | RoHS/ELV合规声明 | Converted to comply with RoHS not ELV directives |
| FCC Part 68隔离 | n/a | ||
电气参数
| 电流 | 5 Amps | 线圈类型 | Non Latching |
| 核心类型 | Monostable | 线圈功率 | 850 mW |
| 线圈电流 | 37.5mA | 释放时间 | 6ms |
| 输入功率 | 0.9 W | 可见输出 | Without |
| 线圈电阻 | 690 Ohms | 供电电压 | 24VDC |
| 开关电压 | 240VAC - Max | 二极管配置 | Without |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 5A |
机械参数
| 包装方式 | Bulk | 端接方式 | Solder Terminals |
| 触点形式 | DPDT (2 Form C) | 致动器类型 | DC |
| 安装类型 | Socketable | 触头材料 | Silver Cadmium Oxide (AgCdO) |
| 外形尺寸 长x宽x高 | 28.20 x 21.80 x 34.90 [1.111 x .858 x 1.375] | 插针孔直径 | n/a |
| 端接样式 | Plug In | 典型触点布局 | 2C DPDT |
| 供应商器件封装 | Dust Cover | ||
产品信息
| 类型 | Relays | 产品特性 | Insulation - Class B |
| 功能 | Single Side Stable | 极性 | No |
| 继电器类型 | General Purpose | 测试按钮 | n/a |
| 卡标准 | General Purpose Relay | 接线图 | 2 Form C |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
相关型号
1860100-1
te connectivity / p&b
Conn Relay Socket SKT 2 POS ST PT7872P Conn Relay Socket SKT 2 POS ST Search Keywords:relay connectors SOCKET, RELAY, 2POLES Relay socket 2-pole, 1860100-1, TE Connectivity
PT78720
TE Connectivity / P&B
Relay Sockets & Hardware SOCKET FOR PT2S SOCKET FOR PT2 MINI RELAYS Relay Socket For Use With PT2 Series Conn Relay Socket SKT 14 POS Screw ST Panel Mount SOCKET, FOR PT2 DIN SCREW TERMINAL DINsocketforPT22Prelay RELAYDINSCOKET2POLE

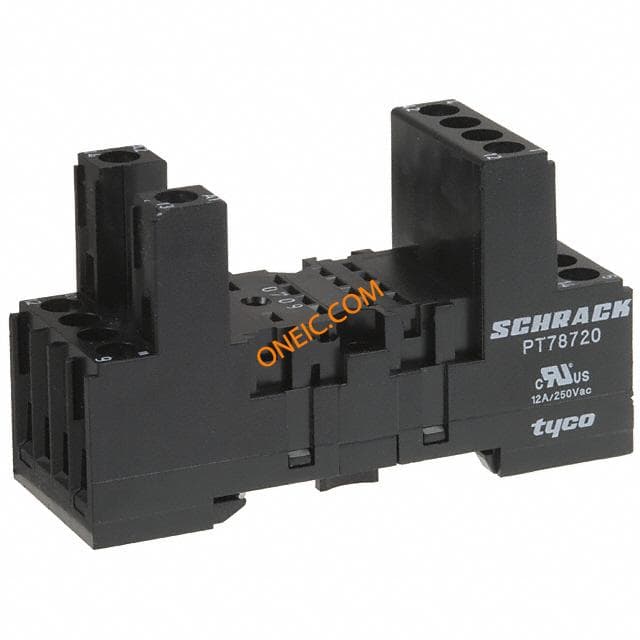

6-1415034-1
