点击放大查看

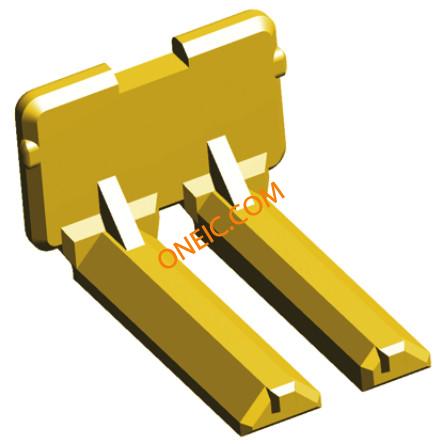

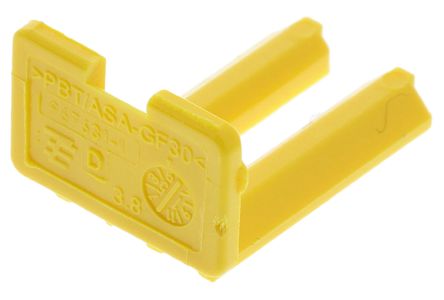

967631-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 9 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Yellow Timer Connectors CONN TAB HSNG SEC LOCK JPT 9POS JPT Timer 2.8 9 way secondary lock Automotive Connectors 2 WAY CONTROL-9P Connector Accessories 9 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Yellow Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 9Housing Color = YellowNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JPTTimer2.89waysecondarylock 5 mm 9 Position Non Sealed 2.8 / JPT Secondary Lock TE Connectivity 辅助锁, 使用于未密封 2.8mm 插片外壳 2. KONT-SICHERUNG 9P |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Secondary Locks | 标准包装数量 | Bulk |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
机械参数
| 颜色 | Yellow | 深度 | 17.5 mm |
| 高度 | 9.6 mm | 密封型 | No |
| 材料（通用） | PBT GF | 包装方式 | Bulk |
| 外壳颜色 | Yellow | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 壳体材料 | PBT/ASA - GF 30 |
| 总长度 | 5.00 [0.197] | 主要材料 | AutomotiveConnectorAccessory |
| 位数 | 9 | ||
产品信息
| 备注 | With Secondary Locking | 类型 | Secondary Lock |
| 系列 | JPT | 可维修 | Yes |
| 产品子类型 | Receptacle Housing | 附件类型 | Lock Plate |
| 射频系列/标准 | 967631 | 适用产品/相关产品 | Junior Power Timer Series |
环境参数
| 工作温度 | -40 – 140 °C [ -40 – 284 °F ] | ||
