点击放大查看

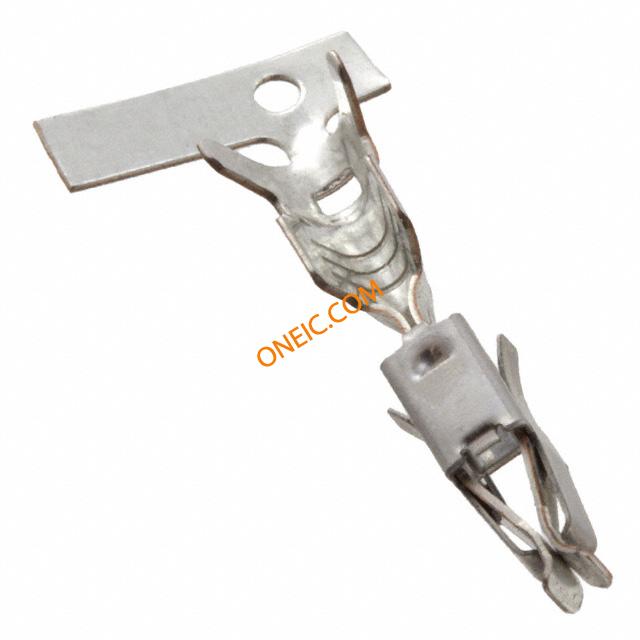

929937-3

制造商	TE Connectivity Ltd.
描述	Contact SKT Crimp ST Cable Mount Loose Piece Timer Contacts CONN SOCKET 13-17 AWG TIN Automotive Connectors SKT 15-13 CUSN/SN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = Junior-Power-TimerReceptacleWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 2.21 - 3.00 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONTACT, SOCKET, 17 TO 13 AWG, CRIMP CONTACT, CRIMP, SOCKET, 15-13AWG, REEL JUN-POW-TIM KONTAKT
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

产品	Contacts	其他名称	A105118CT
产品类别	Automotive Connectors	标准包装数量	Tape & Reel
工厂包装数量	3700

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

机械参数

重量	0.01	包装方式	Tape & Reel (TR)
导线线规	13-17 AWG	端接方式	Crimp
触头类型	Signal	插针或插孔	Socket
连接器类型	Connector Headers and PCB Receptacles	接触镀层	Pre-Tin
安装样式	Wire	触头材料	Copper-Tin
端接样式	Crimp	第一触头极性	:Socket
接触件端接	Crimp	位数	1
接触镀层厚度	39µin (1.00µm)	线规或范围 - AWG	15-13

产品信息

类型	Power	连接器性别	SKT
系列	JPT	适用产品/相关产品	:Junior Power Timer Series Connectors

文档与媒体

在线文档

929937-3?RQPN=929937-3

相关型号

1-967625-1

te connectivity / amp

Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Timer Connectors JR POW TIM 21P Power to the Board JR POW TIM 21P Conn Housing RCP 21 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 21Housing Color = BrownNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT RECEPTACLE, JPT, 21WAY Connector: wire-wire; JPT; plug; female; w/o terminals; PIN:21 21 Position 5 mm Brown Female Socket Receptacle Housing Timer Connector

¥4.7174

详情

282189-7

te connectivity / amp

Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM YEL Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. SPLASH PROOF CONN. W.S.L.

¥2.9920

详情

2-967059-1

te connectivity / amp

Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Heavy Duty Power Connectors 4P JPT RECT HSG Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, RECEPTACLE, 1 ROW, 4WAY, PBT-GF

¥18.1200

详情

282194-1

te connectivity / amp

Conn Housing RCP 7 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN JR PWR TIMER 7POS 5MM BLACK Junior Power Timer 7W receptacle housing Heavy Duty Power Connectors SP CONN W.S.L. Conn Housing RCP 7 POS 5mm Crimp ST Cable Mount Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 7Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer7Wreceptaclehousing TE Connectivity Junior Power Timer 系列 7路黑色母外壳 , 焊接端接 SPLASH PROOF CONN. W.S.L.

¥10.0425

详情

1-967059-1

te connectivity / amp

Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer Connectors J-P-T GEH KOMPL 4P Power to the Board J-P-T GEH KOMPL 4P Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 4Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JPT, 4 POSITION

¥27.1800

详情

282192-3

te connectivity / amp

Conn Housing RCP 4 POS 5mm Crimp ST Cable Mount Timer - Seals CONN JR PWR TIMER 4POS 5MM BROWN SPLASH PROOF CONN. W.S.L.

¥4.6920

详情

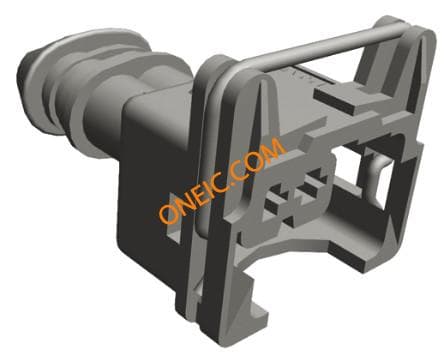

282189-2

te connectivity / amp

Conn Housing RCP 2 POS 5mm Crimp ST Timer Connectors CONN JR PWR TIMER 2POS 5MM GRAY Junior Power Timer 2W receptacle housing Heavy Duty Power Connectors SPLASH PROOF CONN. W.S.L. Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 2Housing Color = GraySealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer2Wreceptaclehousing TE Connectivity Junior Power Timer 系列 2路电缆安装灰色母外壳 SPLASH PROOF CONN. W.S.L.

¥8.3685

详情

282193-1

te connectivity / amp

Conn Housing RCP 5 POS 5mm Crimp ST Cable Mount Timer - Connectors CONN JR PWR TIMER 5POS 5MM BLACK Junior Power Timer 5W receptacle housing Automotive Connectors SPLASH PROOF CONN. W.S.L. Conn Housing RCP 5 POS 5mm Crimp ST Cable Mount Product Highlights:Housing AssemblyConnector Type = Junior Power TimerNumber of Positions = 5Housing Color = BlackSealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer5Wreceptaclehousing TE Connectivity Junior Power Timer 系列 5路黑色母外壳 , 焊接端接 SPLASH PROOF CONN. W.S.L.

¥4.8307

详情

282680-1

te connectivity / amp

Conn Housing RCP 2 POS 5mm Crimp ST Timer - Connectors CONN JR PWR TIMER 2POS 5MM GRAY Junior Power Timer 2W receptacle housing Automotive Connectors SPLASH PR.ASSY W.SEC LOCK2W TY Conn Housing RCP 2 POS 5mm Crimp ST Product Highlights:Housing AssemblyConnector Type = JPTNumber of Positions = 2PA 6.6 Housing MaterialHousing Color = GraySearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JuniorPowerTimer3Wreceptaclehousing TE Connectivity Junior Power Timer 系列 2路灰色母外壳 , 焊接端接 SPLASH PR.ASSY W.SEC.LOCK2W TY

¥6.8000

详情

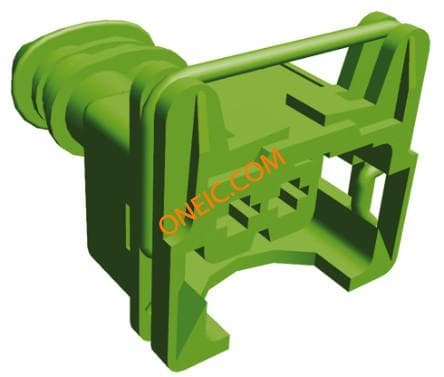

282189-4
