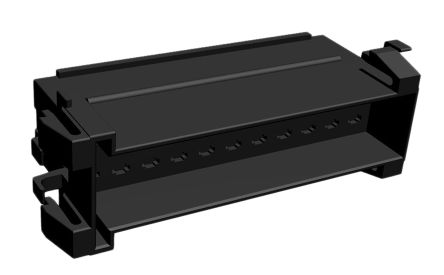

点击放大查看
929505-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 22 POS 5mm Crimp ST Cable Mount FF FA-STE-GEH2X11P Automotive Connectors FF FA-STE-GEH2X11P Conn Housing PL 22 POS 5mm Crimp ST Cable Mount Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 22Housing Color = BlackSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, JR. POWER TIMER, 22 WAY TE Connectivity Junior Power Timer 系列 2行 22路 直插式安装 黑色 母 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 400 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | Black | 深度 | 26 mm |
| 间距 | 5 mm | 重量 | 0.01 |
| 包装方式 | Bulk | 排间距 | 0.220" (5.60mm) |
| 触头类型 | Tab | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 66.8 mm |
| 端接样式 | Crimp | 第一触头极性 | :Pin |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | 外壳尺寸-插件 | :- |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Timer |
