点击放大查看

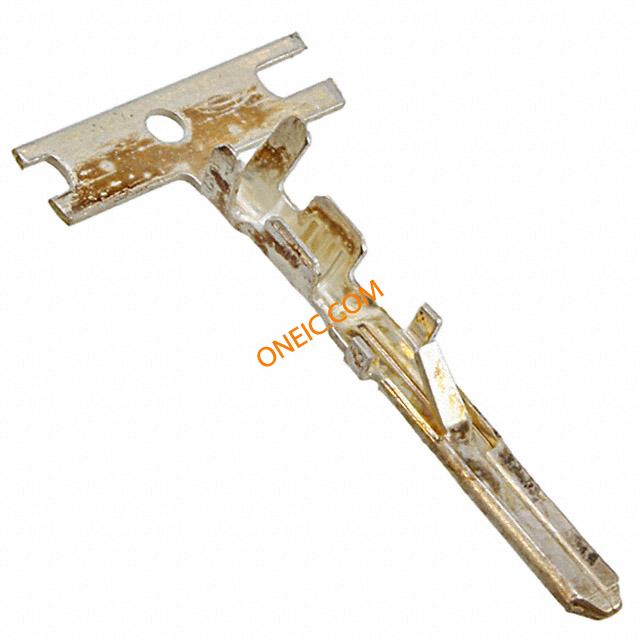

928930-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Terminals FF FLACHSTECKER 2 8 Timer Contacts CONN UNINS TAB 17-20AWG 0.110 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior Timer, Junior-Power-TimerTabWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.40 - 2.31 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Faston Terminals | 其他名称 | A107145CT |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 25 A | ||
机械参数
| 材料（通用） | Copper | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 0.110" (2.79mm) | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.492" (12.50mm) | 导线线规 | 17-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Connector Power |
| 接触镀层 | Silver | 触头材料 | Brass |
| 端接样式 | Crimp | 绝缘直径 | 0.055" ~ 0.091" (1.40mm ~ 2.31mm) |
产品信息
| 连接器性别 | PIN | ||
环境参数
| 工作温度 | - 40 C to + 140 C | ||
