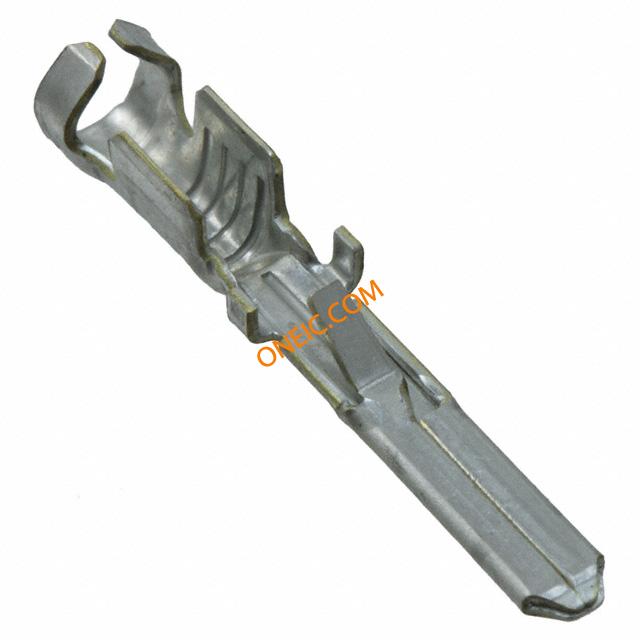

点击放大查看
928781-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Timer Contacts CONN UNINS TAB 13-17AWG 0.110 Terminal Tab 2.79mm 15-13AWG Fastin-on Automotive Connectors FF-FLACHSTECKER 2.8 Contact PIN Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = Junior Timer, Junior-Power-TimerTabWire Range = 1.50-2.50² [15.5-13.5] mm [AWG]Insulation Diameter = 1.80 - 2.90 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CRIMP CONTACT, SKT, 13-15 AWG CONTACT, CRIMP, PIN, 15-13AWG, REEL TERMINALTAB2.79MM TE Connectivity FASTIN-FASTON .110 系列 压接接头端子, 2.79 x 0.81mm, 镀锡触芯 |
| 分类 |
商业参数
| 产品 | Contacts | 其他名称 | A107144CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 25 A | ||
机械参数
| 重量 | 0.01 | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 0.110" (2.79mm) | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.492" (12.50mm) | 导线线规 | 13-17 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 触头材料 | Copper-Zinc |
| 总长度 | 22.5mm | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 接触件端接 | :Crimp |
| 绝缘直径 | 0.071" ~ 0.114" (1.80mm ~ 2.90mm) | 线规或范围 - AWG | 17-13 |
产品信息
| 连接器性别 | PIN | 系列 | Junior Power Timer, Junior Timer |
| 适用产品/相关产品 | :Junior Power Timer Series Connectors | ||
环境参数
| 工作温度 | - 40 C to + 130 C | ||
