点击放大查看

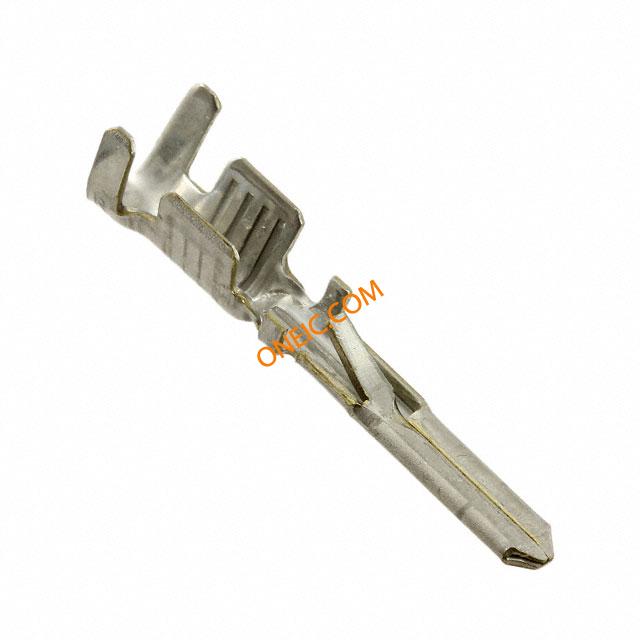

927893-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Terminals FF FLACHST MIF 2.8 Timer Contacts CONN UNINS TAB 12-15AWG 0.110 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = Junior Timer, Junior-Power-TimerTabWire Range = 1.50-3.00² [15.5 -12] mm [AWG]Insulation Diameter = 2.29 - 3.51 mmSearch Keywords:miniature spring assembly, Power Blade & Receptacle, Cabled Power, Flat, MCP Contact System, Multiple Contact Point (MCP), MCP, Standard Power Timer Contact, STP, S.T.P., Std. Power Timer CONN QC TAB 12-15AWG 0.110 CRIMP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Faston Terminals | 其他名称 | A111655CT |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 25 A | ||
机械参数
| 材料（通用） | Copper | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 0.110" (2.79mm) | 绝缘类型 | Non-Insulated |
| 导线线规 | 12-15 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 触头材料 | Copper-Zinc | 端接样式 | Crimp |
| 绝缘直径 | 0.091" ~ 0.138" (2.31mm ~ 3.51mm) | ||
产品信息
| 连接器性别 | PIN | ||
环境参数
| 工作温度 | - 40 C to + 130 C | ||
