点击放大查看

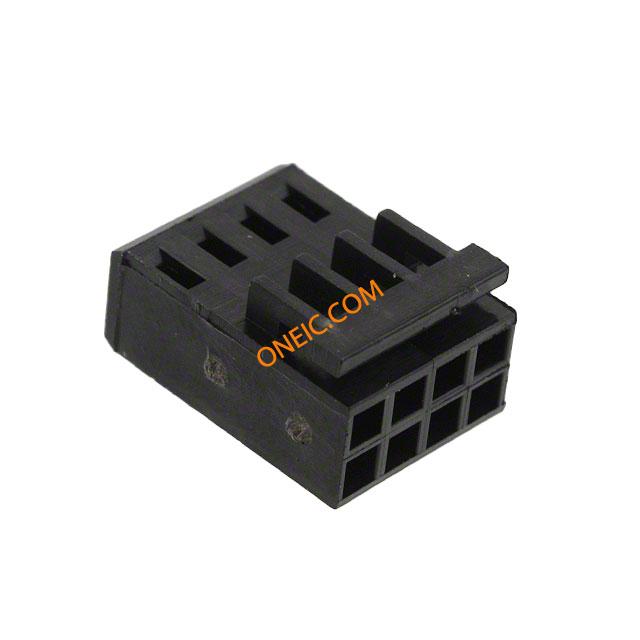

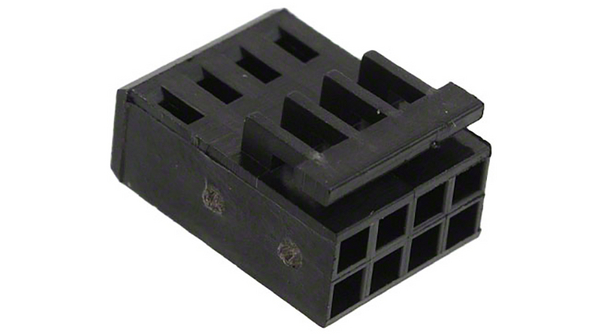

926476-4
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS DL .100 CRIMP Connector,4way skt shell double row Headers & Wire Housings HSG RECPT 2X04P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 2.54MM, 8WAY 4WSKTSHELLD/R Crimp housing Pitch2.54 mm Poles 8 Double row / straight AMPMODU MOD IV, 926476-4, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 8 路 直 母 电缆安装 PCB 连接器外壳 2X4P MODU 4 HSG. |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 14.2mm |
| 间距 | 2.54 mm | 宽度 | 7.6mm |
| 长度 | 10.16mm | 重量 | 0.02 |
| 包装方式 | Bulk | 出线方向 | With |
| 导线线规 | 22-30 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp | 排数 | 2 |
| 封装形式 | Receptacle | 壳体材料 | Polyester (PBT) |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 产品子类型 | Housing |
| 适用产品/相关产品 | Mod 1/2 Wire to Board Standard Pressure Contact | ||
环境参数
| 工作温度 | -65C to 105C | ||
