点击放大查看

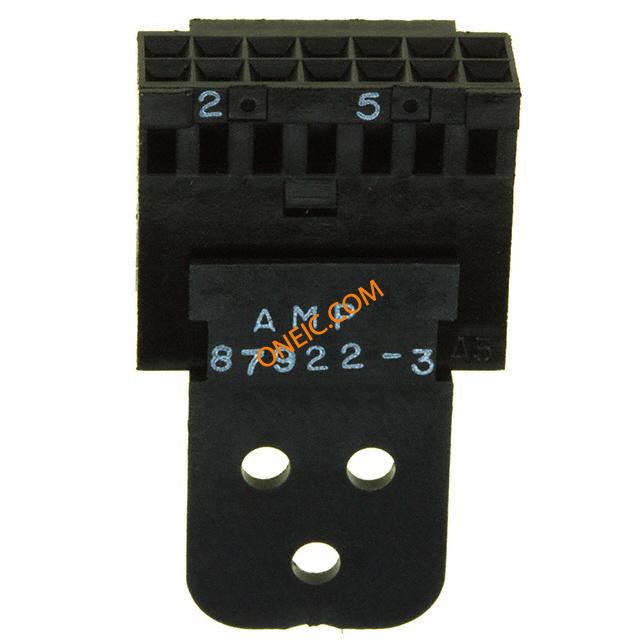

87922-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 14POS .100 POL W/STR Headers & Wire Housings MOD IV W/STR RLF 14P Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 14 MODIV HSG W/STR RLF DR MRKD
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A25860
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	100

合规参数

RoHS	Not applicable / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	7.32 mm [ .288 in ]	长度	17.78 mm [ .7 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
排间距	0.100" (2.54mm)	触头类型	Male or Female
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	磷青铜	壳体材料	Thermoplastic
包装数量	100	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	14
接触件端接	Crimp	位数	14
安装孔直径	带有	静电放电屏蔽	带有

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	Strain Relief	产品子类型	Receptacles / Sockets - Housings
抽头/步进数	1	其他规格	是

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C
