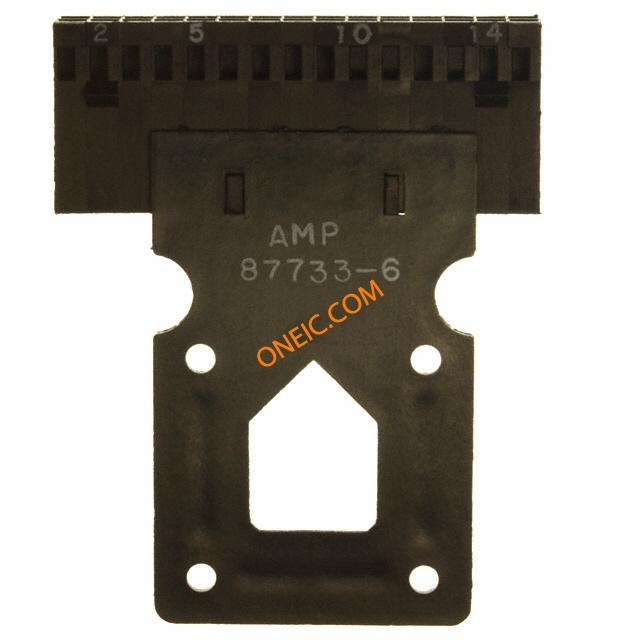

87733-6

点击放大查看

87733-6

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG 2X15C F/H POL .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 30POS .100 POL W/STR 87733-6 Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG W/STR RLF DR MRKD
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量50

合规参数

RoHSRoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

额定电压250 VAC开关功能Detent Latching
供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
最大额定电流3 A保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度6.1 mm [ .24 in ]长度38.1 mm [ 1.5 in ]
锁定类型带有包装方式Bulk
壳体颜色黑色导线线规20-32 AWG
排间距2.54 mm触头类型Male or Female
安装类型Straight连接器类型Receptacle
接触镀层Gold紧固类型Locking Ramp
安装样式Through Hole排数2
插入件材料磷青铜壳体材料Thermoplastic
包装数量50端接样式Crimp
第一触头极性Socket (Female)触点数30
接触件端接Crimp位数30
安装孔直径带有静电放电屏蔽带有

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
产品特性Strain Relief产品子类型Receptacles / Sockets - Housings
抽头/步进数2其他规格是

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C

文档与媒体

在线文档
87733-6
在线文档
87733-6?RQPN=87733-6

相关型号

6-102618-3

6-102618-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 15AU Headers & Wire Housings SHROUDED VER DUAL 30 detent windows Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL

¥17.6120
详情
1-102617-3

1-102617-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole AMPMODU Shrouded Headers CONN HEADER R/A .100 30POS 15AU Headers & Wire Housings SHROUDED RA DUAL 30 detent windows Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRRA SHRD .100CL

¥15.9800
详情
1-87579-2

1-87579-2

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 30POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 30 detent windows 30 MODII HDR DRRA SHRD .100CL 30 MODII HDR DRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥8.7584
详情
1-103165-1

1-103165-1

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 30POS DUAL R/A .100 Headers & Wire Housings 30 MODII HDR DRRA 3/4SHRD .100 30 MODII HDR DRRA 3/4SHRD .100

¥15.0416
详情
6-103169-3

6-103169-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 30AU Headers & Wire Housings ACTION PIN VERT 30P dual .150 end 30 MODII HDR DRST SHRD .100CL

¥48.6200
详情
6-103166-3

6-103166-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 30POS 30AU Headers & Wire Housings 30P HDR DRRA SHRD Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded30 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRRA SHRD LF

¥18.6320
详情
6-103168-3

6-103168-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR 2X15P VRT T/H .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 30AU Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL

¥19.1760
详情
104319-3

104319-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 30POS DL R/A SHRD AU Headers & Wire Housings 30 MODII HDR DRRA SHRD .100CL Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRRA SHRD .100CL

¥29.3487
详情
1-102618-3

1-102618-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 15AU Headers & Wire Housings SHROUDED VER DUAL 30 detent windows Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL

¥23.1200
详情
6-102619-3

6-102619-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 15AU Headers & Wire Housings ACTION PIN VERT 30P dual .150 end .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL

¥26.5880
详情
1-103169-3

1-103169-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 30AU Headers & Wire Housings ACTION PIN VERT 30P dual .150 end Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL

¥21.3520
详情
6-102617-3

6-102617-3

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 30POS 15AU Headers & Wire Housings HDR RA .100 30P 15AU 30 MODII HDR DRRA SHRD LF

¥16.0480
详情
1-103167-2

1-103167-2

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 30POS DUAL R/A 30AU Headers & Wire Housings 30 MODII HDR DRRA SHRD .100CL 30 MODII HDR DRRA SHRD .100CL

¥46.5800
详情

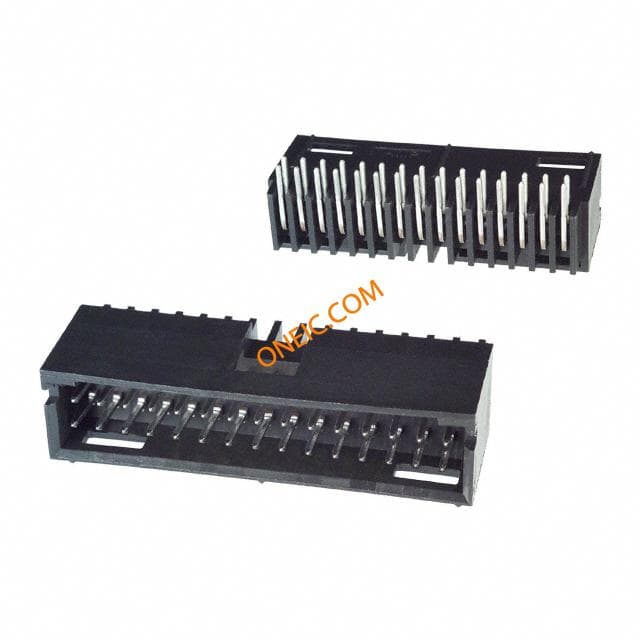

6-87579-2

6-87579-2

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 30POS PCB TIN Headers & Wire Housings 30P HDR DRRA SHRD 6-87579-2 Conn Shrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRRA SHRD LF

¥12.7840
详情
6-102699-4

6-102699-4

te connectivity / amp

Conn Shrouded Header HDR 30 POS 2.54mm Press Fit ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 30AU

详情

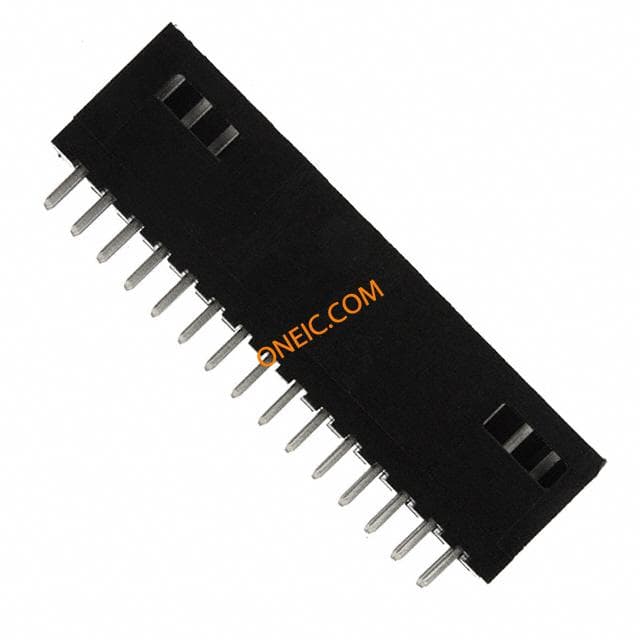

6-87589-1
