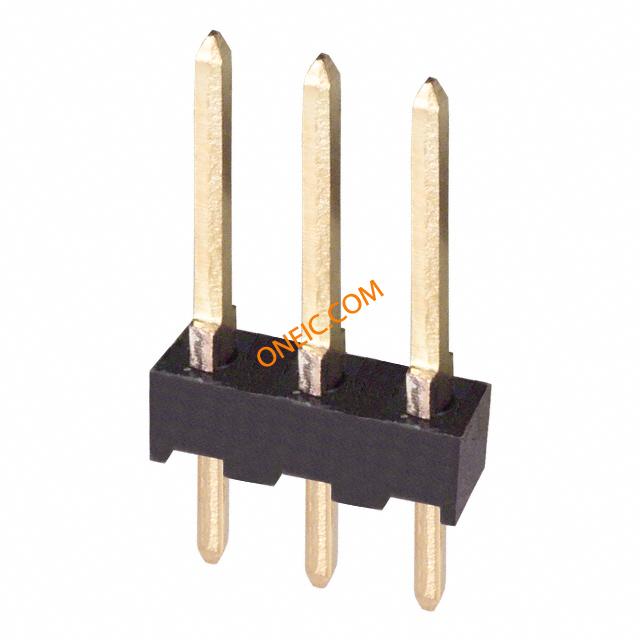

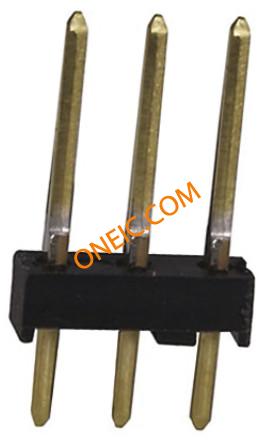

87224-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 3POS 15AU AMPMODU II Pin Header 2.54mm 3P Headers & Wire Housings UNSHRD VERT SNGL 3 Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 3Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONNECTOR HEADER, 3WAY, 1ROW Header;Standard;PCBMount;Single;3;0.025in.;0.125in.;Square;0.1in. 03 MODII HDR SRST UNSHRD .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 520 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant,UL94V-0HousingFlammabilityRating |
| 海关税号 | 85366910 | 无铅定义 | Wave solder capable to 240°C |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 10.37 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 端口尺寸 | 0.025in. | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.318" | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 行程角度 | Straight |
| 连接器类型 | Standard | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 7.21 mm | 安装特性 | Without |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | :Through Hole Vertical |
| 位数 | 3 | 触点镀层 | Gold(15μin.) |
| 柱体长度（配合） | 8.08 mm | 接触长度 - 配合 | 8.08 [0.318] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU/MOD II | 产品特性 | Pinstrip |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 矩阵（列×行） | 0.1in. |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 工作温度 | +105°C |
