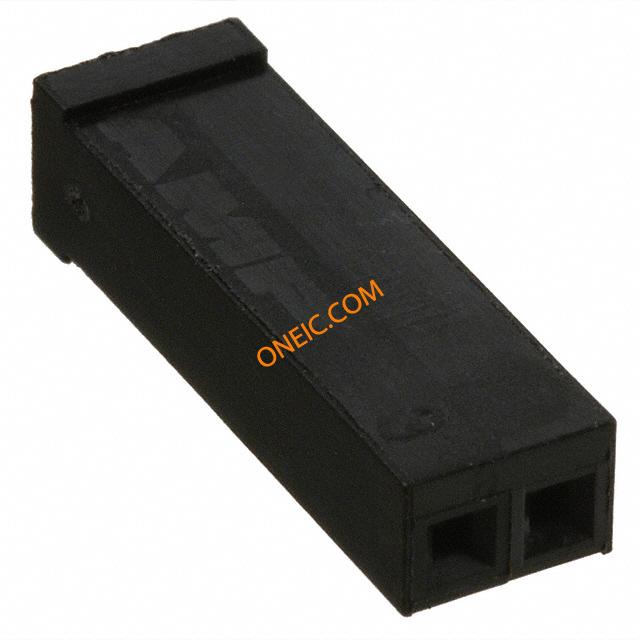

点击放大查看

87175-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 2POS .100 LOCKING .100 AMP housing locking clip,2way Headers & Wire Housings CONN HOUSING 2 POS SINGLE ROW Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;2;250VAC;3A;750V TE Connectivity AMPMODU 系列 2.54mm 节距 2 路直母电缆安装 PCB 壳体 02 LOCKING CLIP HSG SR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
认证机构	CSA,UL	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	击穿电压	750V
最大额定电流	3 A	绝缘电阻	5000Megohms
最小供电电压	250VAC	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	17.78mm
间距	2.54 mm	宽度	4.44mm
高度	4.44 mm	长度	5.48mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
方向	直	排间距	2.54 mm
端接方式	CrimpSnap-In	触头类型	Female Socket
极化	No	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	排数	1
插入件材料	磷青铜	壳体材料	PET
总长度	5.48 mm	包装数量	1
主要材料	InterconnectSystem	连接器 - 电缆	No
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	2
接触件端接	Crimp	位数	2
安装孔直径	不带	典型触点布局	同轴

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU
产品特性	ClosedEnd	制造商全称	AMPMODU
产品子类型	Receptacles / Sockets - Housings	其他规格	否
矩阵（列×行）	0.1in.	适用产品/相关产品	Centerline Single-Row Connector

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

87175-6?RQPN=87175-6
