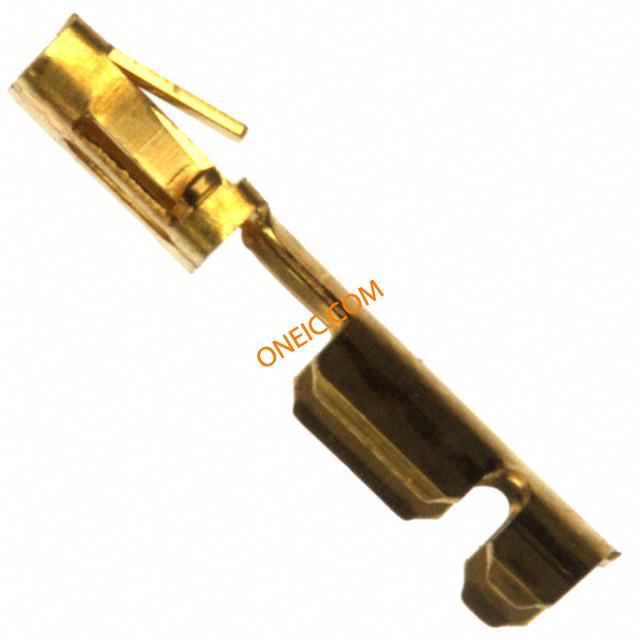

87046-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 15AU CRIMP AMPMODU IV Socket Contact Gold 24-20 AWG Headers & Wire Housings INTERMEDIATE 24-20 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.75 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP Contact;ModIV.v;24-20AWG;Crimp;250;3A;750V;-65degC;105degC MOD IV RECP LP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250 V | 接触电阻 | 12 mohm |
| 击穿电压 | 750V | 最大额定电流 | 3A |
| 绝缘电阻 | 5000Megohms | 最小供电电压 | 250VAC |
机械参数
| 深度 | 2.41 mm | 间距 | Not Required mm |
| 高度 | 2.03 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Beryllium Copper | 壳体材料 | Not Required |
| 总长度 | 12.24 mm | 导线端接方式 | Crimp |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 触点镀层 | Gold(15) | 接触镀层厚度 | 15µin (0.38µm) |
| 线规或范围 - AWG | :24AWG | 护套（绝缘）厚度 | 0.069in. |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | AMPMODU MOD IV | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mod IV.v Series Connectors | ||
环境参数
| 工作温度 | +105°C | 结工作温度 | 105°C |
