点击放大查看

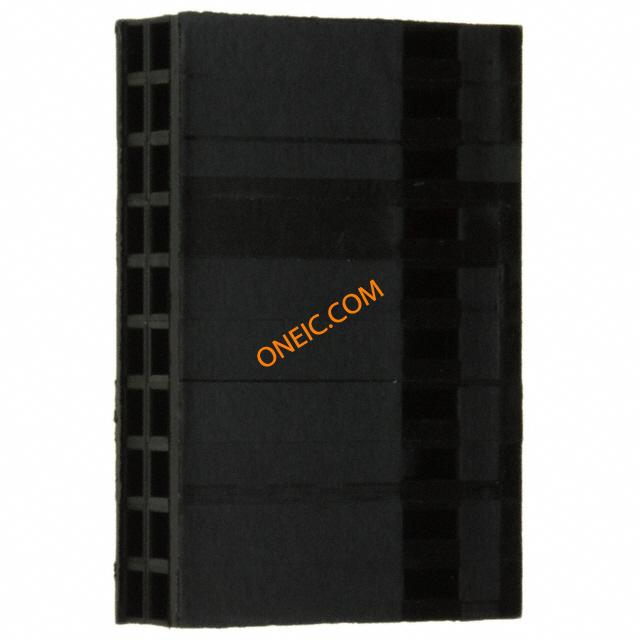

86177-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL ROW 20 MODIV HSG COMP DR .100CL 20 MODIV HSG COMP DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装规格

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	25.4 mm [ 1 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	排数	2
插入件材料	磷青铜	壳体材料	尼龙 - GF
包装数量	1	端接样式	插座
触点数	20	接触件端接	Crimp
位数	20	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	不带	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品子类型	连接器
其他规格	否

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105
