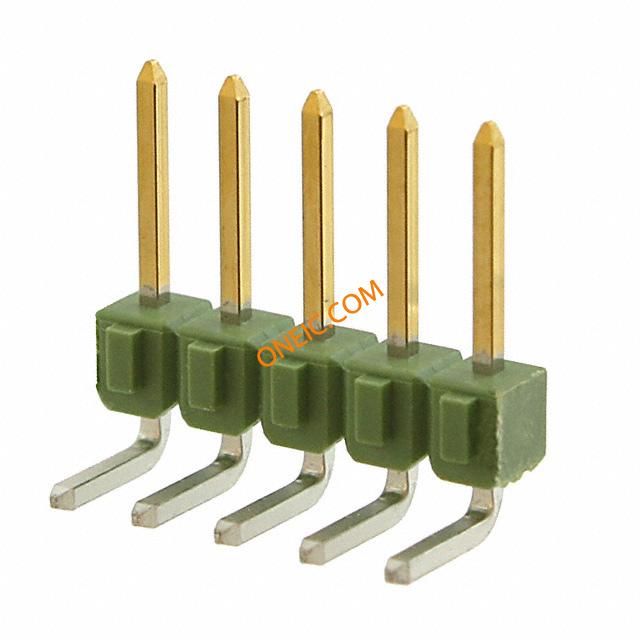

826631-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 5POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 5P SINGLE ROW R/A Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 5WS/RR/APINHEADERAU TE Connectivity AMPMODU Mod II 系列 2.54mm节距 5路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔 5P AMPMODU II STIFT LEI |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 标准编号 | CSA LR7189, CUL E28476 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3A | ||
机械参数
| 尺寸 | .062 | 颜色 | Green |
| 深度 | 10.8 mm | 间距 | 2.54 mm |
| 高度 | 3.05 mm | 底座类型 | 不带 |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 稳定器 | 不带 |
| 方向 | 直角 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 标称内径 | .63 | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 连接器类型 | Breakaway | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 磷青铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic Polyester |
| 总长度 | 12.7 mm | 安装特性 | Without |
| 包装数量 | 700 | 面板安装类型 | Without |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一连接器类型 | 分离 | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 端接表面处理 | 不带 |
| 位数 | 5 | 柱体长度（配合） | 6.7 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 6.70 [0.264] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | 31.5µin (0.80µm) | 静电放电屏蔽 | 不带 |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 覆盖范围 | 无覆盖 |
| 钥匙类型 | 否 | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | -65C to 105C | 结工作温度 | 否 |
